The AX-E53-4L-AX-N95/97/100/150/305/355-2C-4L is a fanless system from AXTRON, featuring a wire-free docking architecture and an all-aluminum heat dissipation design. It integrates an Intel® Celeron N95/N97/N100/N150/N305/N355 quad-core processor and a single SODIMM DDR4 3200MHz memory module with up to 32GB of RAM. It also features four USB 2.0 ports and two USB 3.0 ports. Thiseconomical and reliable system is ideal for automation, industrial control, and visual inspection applications.
| CPU | Integrated Intel® Celeron N95/N97/N100/N150/N305/N355 quad-core processor | |
| Processor | Alder Lake-N N95/3.40 GHz ,quad core processor, TDP 15W | |
| Integrated intel Celeron N97 / 1.60GHz dual core processor, TDP 6.5Wcompatible with intel@ Airmont series CPU | ||
| Integrated intel Celeron N100 / 3.40GHz quad core processor, TDP 6Wcompatible with intel@ Alder Lake-N series CPU | ||
| Iintegrated intel Celeron N150 / 3.80GHz quad core processor, TDP 6W compatible with intel® Alder Lake-N series CPU | ||
| Integrated lntel Celeron N305 / 3.80GHz quad core processor, TDP 15W compatible with intel@ Alder Lake-N series CPU | ||
| Intel® Core" Processor N-series,N355/3.90 GHz ,8 core processor, TDP 15W | ||
| BIOS | AMI EFI BIOS Power-on after power loss, PXE, WOL | |
| RAM | 1*SODIMM DDR4 3200MHz Max 32G | |
| GPU | Integrated Intel® UHD Graphics | |
| Display (Multi- Display Support) |
HDMI | 1*HDMI2.0 Max 4K 60hz |
| DP | 1*DP1.2 4K 60Hz | |
| Storage | SATA | 1*SATA3.0 6Gb/s |
| M.2 | 1* M.2 Key-M 2280/2242 (default 2280, 2242 customizable) adaptive PCIE/SATA SSD | |
| LAN | RJ45 | 4*intel I225/I226 2.5G network cards |

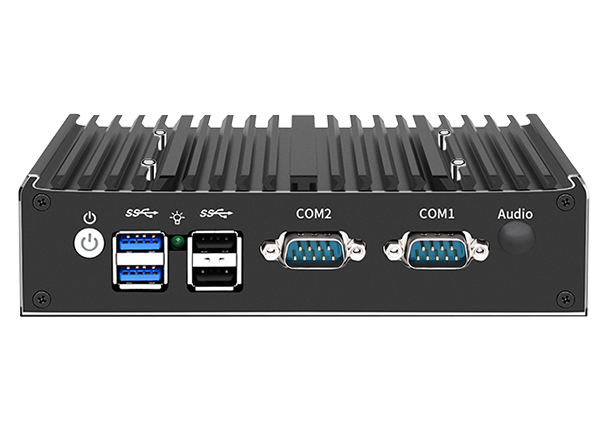

| USB | USB2.0/3.0 | 2*USB3.0+4*USB2.0 |
| Built-in I/O | interface | 1* TPM2.0 pin interface 2*6Pin, 1* hard disk power supply interface, 1* 4pin small white seat power interface, 1* 2*5Pin GPIO pin |
| Serial Port | DB9 | 2*COM RS232 (modify the hardware to support RS485) |
| Expansion interface | M.2_WIFI(E_KEY) | M.2_WIFI(E_KEY) 2230 socket PCIE protocol supports CNVI |
| MPCIE | Support WIFI/4G PCIE protocol | |
| SIM | 1*Mini SIM compatible with Nano SIM | |
| GPIO | Support 4 GPIOs | |
| Hardware Detection | Watchdog | 4~255 seconds watchdog timer |
| Fan | 4Pin 12V CPUFan detection and intelligent control (optional) | |
| Hardware Control | Auto Power-on(AX-ATX1) | AX-ATX (1-2) default, AX-ATX (2-3) automatically starts when a power is received |
| Power Supply | DC_IN | DC 12V, DC plug 5.5*2.5mm |
| Temperature /Humidity |
Operating | -10~60 degrees Celsius/5~95%RH, relative humidity, no condensation |
| Storage | -20~70 degrees Celsius/5~95%RH, relative humidity, no condensation | |

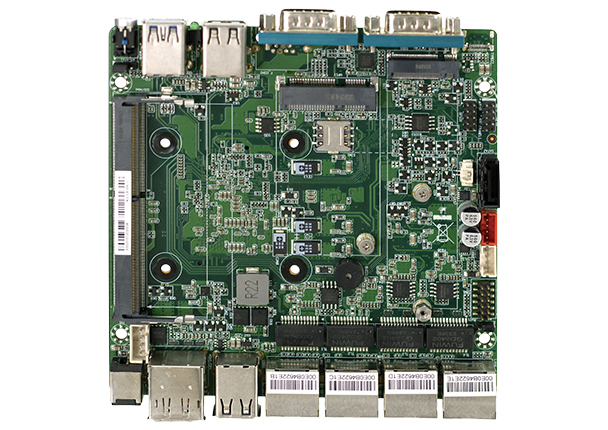

| Dimensions | PCB | 120*120mm |

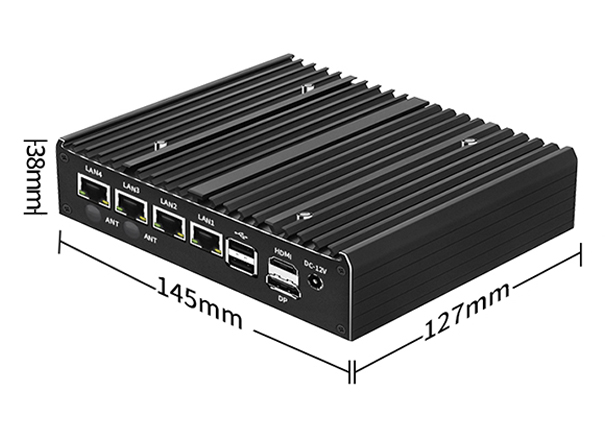

| Chassis | 145*127*37mm | |
