AXTRON's YK-E53-2L/CX-N95/97/100/150/305/355-2C-2L, with its core competitive advantages of extreme compactness, comprehensive interface compatibility, and industrial-grade reliability , redefines the performance boundaries of mini industrial control computers. Its flexible configuration and low power consumption perfectly meet diverse needs, from smart terminals to edge computing, and are particularly suitable for space-constrained or harsh environments.
| CPU | Integrated Intel® Celeron N95/N97/N100/N150/N305/N355 quad-core processor | |
| Processor | Alder Lake-N N95/3.40 GHz ,quad core processor, TDP 15W | |
| Integrated intel Celeron N97 / 1.60GHz dual core processor, TDP 6.5Wcompatible with intel@ Airmont series CPU | ||
| Integrated intel Celeron N100 / 3.40GHz quad core processor, TDP 6Wcompatible with intel@ Alder Lake-N series CPU | ||
| Iintegrated intel Celeron N150 / 3.80GHz quad core processor, TDP 6W compatible with intel® Alder Lake-N series CPU | ||
| Integrated lntel Celeron N305 / 3.80GHz quad core processor, TDP 15W compatible with intel@ Alder Lake-N series CPU | ||
| Intel® Core" Processor N-series,N355/3.90 GHz ,8 core processor, TDP 15W | ||
| BIOS | AMl EFl BlOS Power-on after power loss, PXE, WOL | |
| RAM | 1*SODIMM DDR4 3200MHz Max 32G | |
| GPU | Integrated Intel® UHD Graphics | |
| Display (Multi- Display Support) |
HDMI | 1*HDMI2.0 Max 4K 60hz (one more can be added) |
| DP/VGA | 1*DP1.2 4K 60Hz/1*VGA 1080P 30Hz (choose one) | |
| Storage | SATA | 1*SATA3.0 6Gb/s |
| M.2 | 1* M.2 Key-M 2280 | |

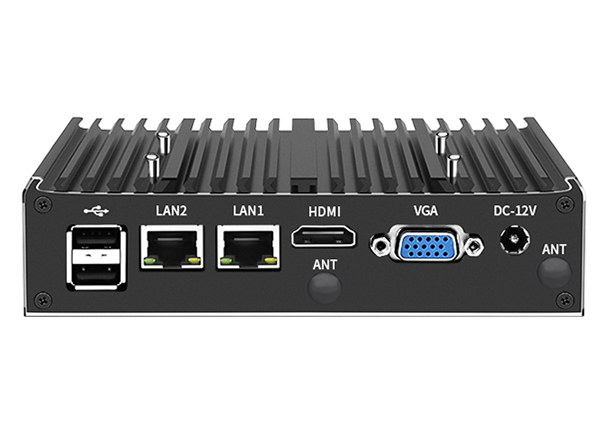

| LAN | RJ45 | 2* Realtek Gigabit Ethernet ports |

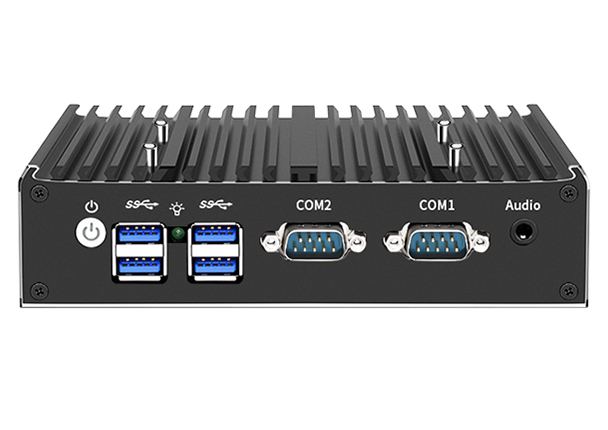

| USB | USB2.0/3.0 | 4*USB3.0+2*USB2.0 |
| Built-in I/O | interface | 1* TPM2.0 pin interface 2*6Pin, 1* hard disk power supply interface, 1* 4pin small white seat power interface, 1* 2*5Pin GPIO pin |
| Serial Port | DB9 | 2*COM RS232 (modify the hardware to support RS485) |
| Expansion interface | MPCIE | Support WIFI/4G PCIE protocol |
| SIM | 1*Nano SIM | |
| GPIO | Support 8 GPIOs | |
| Hardware Detection | Watchdog | 4~255 seconds watchdog timer |
| Fan | 4Pin 12V CPUFan detection and intelligent control (optional) | |
| Hardware Control | Auto Power-on(AX-ATX1) | AX-ATX (1-2) default, AX-ATX (2-3) automatically starts when a power is received |
| Power Supply | DC_IN | DC 12V, DC plug 55*25mm |
| Temperature /Humidity |
Operating | -10~60 degrees Celsius/5~95%RH, relative humidity, no condensation |
| Storage | -20~70 degrees Celsius/5~95%RH, relative humidity, no condensation | |

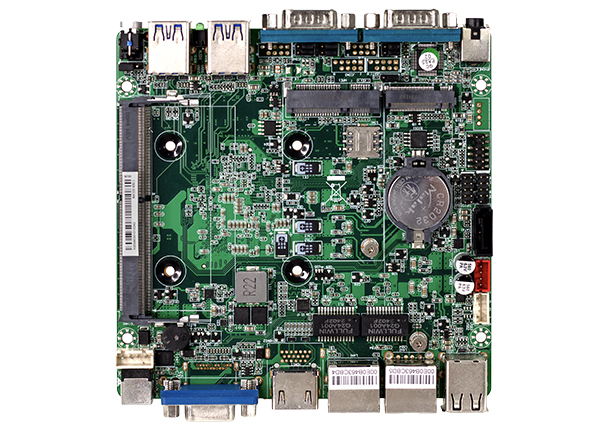

| Dimensions | PCB | 120*120mm |

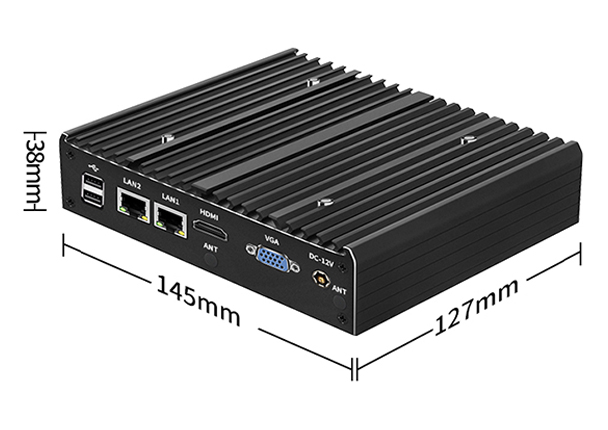

| Chassis | 145*127*37mm | |
