AX-F66-2C-4L



  • CPU：Intel® Celeron J6412 2.0GHz
  • RAM：2*SODIMM DDR4 3200MHz MAX 32G total 64G
  • Storage：1*SATA3.0；1* M.2 Key-M 2280/2242 Default 2280 (NGFF/PCIE adaptive)
  • Interfaces：1*HDMI2.0；1*DP1.2；4*LAN；4*USB2.0 + 2*USB3.0；2*COM RS232
  • Expansion interface：MPCIE supports WIFI/4G PCIE protocol；1*Nano SIM；supports 8-way GPIO
    Send Email Get Price

    Product Overview

    In the Industry 4.0 era, the deluge of data and interconnected devices pose unprecedented challenges to network bandwidth.TheAX-F66-AX-J6412-2C-4L, featuring4 x 2.5G ultra-high-speed network portsand equipped with an Intel® Celeron J6412 quad-core processor, is designed specifically for high-density data transmission scenarios (such as industrial vision, real-time monitoring, and edge AI), becoming the "network hub" for smart factories, data centers, intelligent security, and other fields.



    微信图片_2025-08-27_155231_278



    微信图片_2025-08-27_155244_841-2



    微信图片_2025-08-27_155248_723

    Product Features

    • CPU：Intel® Celeron J6412 2.0GHz
    • RAM：2*SODIMM DDR4 3200MHz MAX 32G total 64G
    • Storage：1*SATA3.0；1* M.2 Key-M 2280/2242 Default 2280 (NGFF/PCIE adaptive)
    • Interfaces：1*HDMI2.0；1*DP1.2；4*LAN；4*USB2.0 + 2*USB3.0；2*COM RS232
    • Expansion interface：MPCIE supports WIFI/4G PCIE protocol；1*Nano SIM；supports 8-way GPIO

    Parameter

    CPU Intel® Celeron J6412 2.0GHz
    Processor Integrated intel Pentium Siver J6412 / 2.0GHz quad core processor, TDp 10W compatible with intel Jasper Lake series CPU
    BIOS 128Mb Flash ROM, automatic boot upon incoming call, PXE, WOL
    RAM 2*SODIMM DDR4 3200MHz MAX 32G total 64G
    GPU Intel® UHD Graphics
    Display  (Multi-
    Display  Support)    		 HDMI 1*HDMI2.0 4K 60Hz
    DP 1*DP1.2 Max 4K 60Hz
    Storage SATA 1*SATA3.0 6Gb/s
    M.2 1* M.2 Key-M 2280/2242 Default 2280 (NGFF/PCIE adaptive)

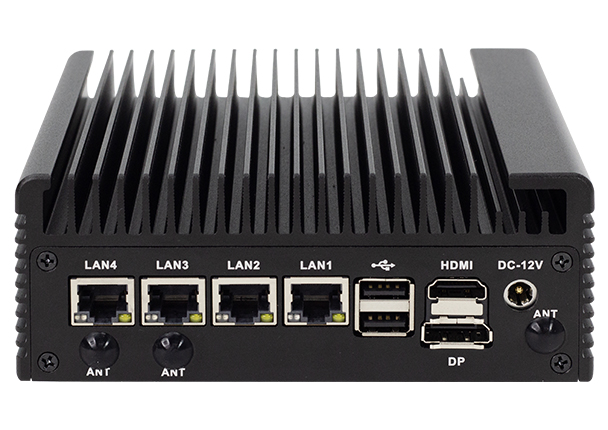

    LAN RJ45 4* Intel i225/i226 2.5G network cards
    USB USB2.0/3.0 4*USB2.0+2*USB3.0

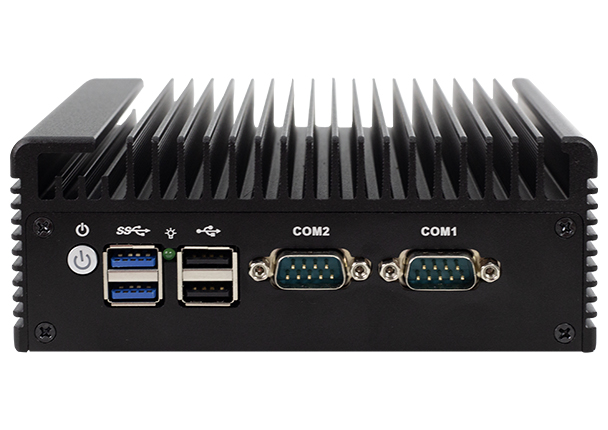

    Serial Port DB9 2*COM RS232 (COM1 hardware can support RS485)
    Expansion interface MPCIE Support WIFI/4G PCIE protocol
    SIM 1*Nano SIM
    GPIO Support 8-way GPIO (4 inputs, 4 outputs)
    Hardware Detection Watchdog  Watchdog Timer
    Fan 4Pin 12V CPU Fan detection and intelligent control (optional)
    Hardware Control Auto Power-on(AT-ATX) AUTOPWR(1-2)NORMAL，AUTOPWR(2-3)AUTO POWER ON
    Power Supply DC_IN DC 12V, DC plug 5.5*2.5mm
    Temperature
    /Humidity    		 Operating -10~60 degrees Celsius/5~95%RH, relative humidity, no condensation
    Storage -20~70 degrees Celsius/5~95%RH, relative humidity, no condensation

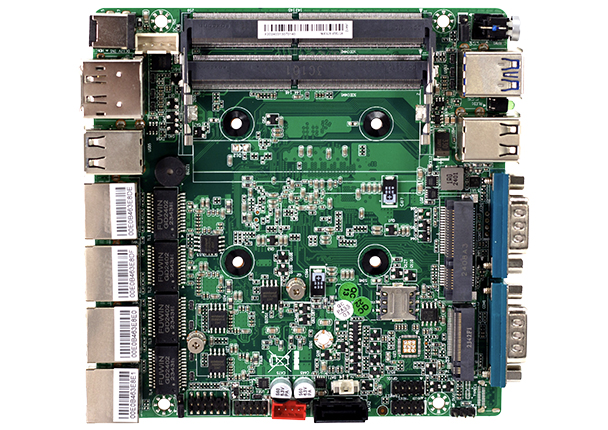

    Dimensions PCB 120*120mm

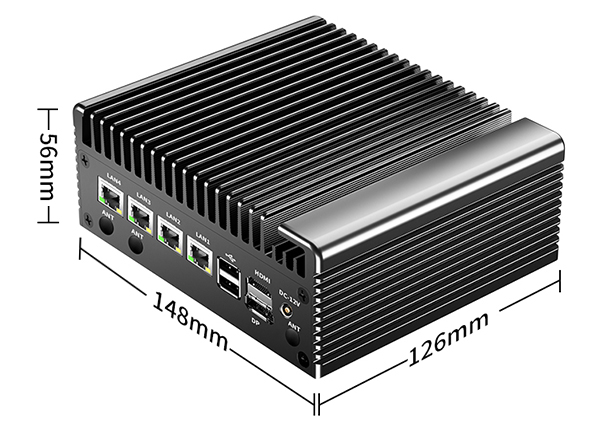

    Chassis 148*125*56mm
