The AX-F62/AX-F62F-AX-N100-2C-4L is a fanless system from AXTRON, featuring a wire-free docking architecture and an all-aluminum heat dissipation design. It features an Intel® Alder Lake-N N100 processor and a single SODIMM DDR5 4800MHz memory module with up to 32GB of RAM. It also features four USB 2.0 ports and two USB 3.2 Gen2 ports. This economical and reliable system is ideal for automation, industrial control, and cybersecurity.
| CPU | Intel Alder Lake-N N100 | |
| Processor | Integrated Intel Celeron N100 / 3.40GHz quad core processor, TDP 6W compatible with lntel@ Alder Lake-N series CPu | |
| BIOS | AMI 128M BIOS (winbond 25Q128JVSQ) with automatic boot upon incoming call, PXE, WOL | |
| RAM | 1*SODIMM DDR5 4800MHz Max 32G | |
| GPU | Intel® UHD Graphics | |
| Display (Multi- Display Support) |
HDMI | 1*HDMI2.0 Max 4K 60hz |
| EDP | 1*EDP pin header (2*15Pin 2.0mm) Max 1080P 60hz | |
| Storage | SATA | 1*SATA3.0 6Gb/s |
| M.2_SSD(M_KEY) | 1*M.2 SSD2280 (NGFF/PCIE adaptive) | |

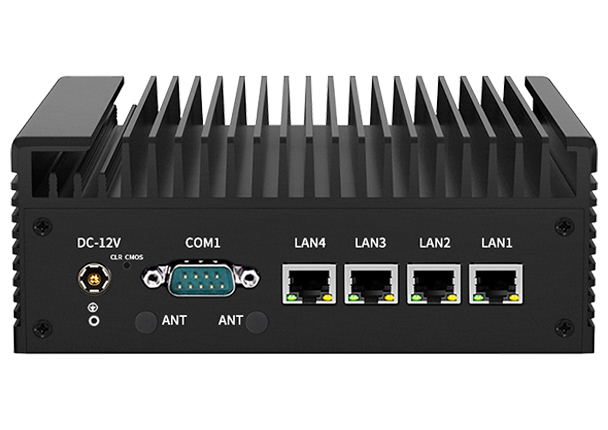

| LAN | RJ45 | 4*inter I226-V (Lan1 can be changed to pin header) |

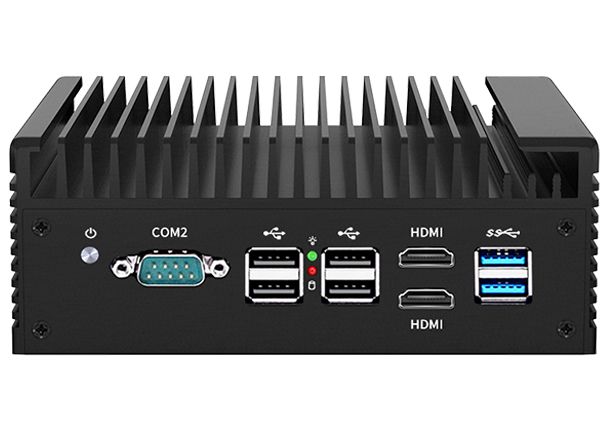

| USB | USB2.0/3.0 | External 4*USB2.0 (all can be changed to pin headers, one USB can be flipped 180 degrees) + 2*USB3.2 Gen2 |
| Serial Port | DB9/RJ45 | 2*COM RS232 (COM2 supports RS485, COM1 supports RJ45 or pin header) |
| Expansion interface | M.2_WIFI(E_KEY) | M.2_WIFI(E_KEY) 2230 socket PCIE protocol supports CNVI |
| MPCIE | Support WIFI/4G PCIE protocol | |
| SIM | 1*NANO SIM | |
| GPIO | Support 8 GPIOs | |
| Hardware Detection | Watchdog | 4~255 seconds watchdog timer |
| Fan | 4Pin 12V System Fan detection and intelligent control | |
| Hardware Control | Auto Power-on(JP3) | JP3(1-2)AUTO POWER ON，JP3(2-3)NORMAL |
| Hardware encryption | TPM | TPM2.0 hardware encryption (optional) |
| Power Supply | DC_IN | DC 12V, DC plug 55*25mm |
| Temperature /Humidity |
Operating | -20~60 degrees Celsius/0~90%RH, relative humidity, no condensation |
| Storage | -20~60 degrees Celsius/0~90%RH, relative humidity, no condensation | |

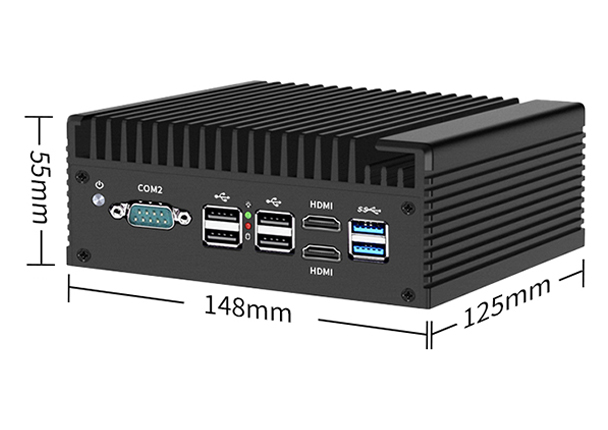

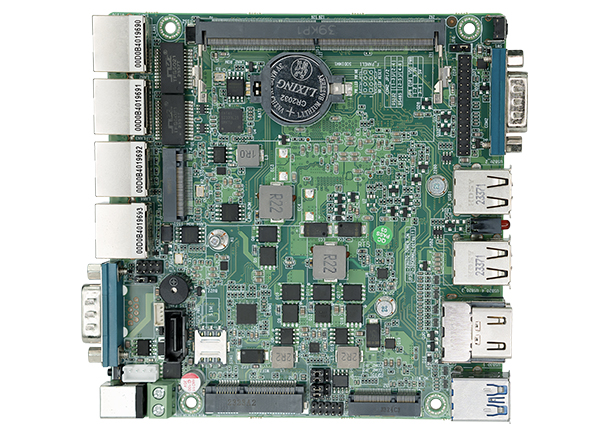

| Dimensions | PCB | 120*120mm |
| Chassis | 148*125*56mm | |
