The AX-F61-AX-N100/N150-2C-2L is a fanless system from AXTRON, featuring a cable-free docking architecture and an all-aluminum chassis for heat dissipation. It is powered by an Intel® Alder Lake-N SoC CPU and supports a single SODIMM DDR4 3200MHz memory module up to 32GB. The system offers 2 × USB 2.0, 2 × USB 3.0, 1 × USB 3.2 Gen1 (near the cooling fins), and 1 × USB Type-C 3.0 (non-touch). It is economical and highly reliable, making it suitable for automation, industrial control, and machine vision applications.
| CPU | Intel Alder Lake-N N100/N150 | |
| Processor | Integrated Intel Celeron N100 / 3.40GHz quad core processor, TDP 6W compatible with lintel® Alder Lake-N series CPU | |
| Integrated intel Celeron N150 / 3.80GHz guad core processor, TDP 6W compatible with lintel@ Alder Lake-N series CPU | ||
| BIOS | AMI 128M BIOS (winbond 25Q128JVSQ) with automatic boot upon incoming call, PXE, WOL | |
| RAM | 1*SODIMM DDR4 3200MHz Max 32G | |
| GPU | Intel® UHD Graphics | |
| Display (Multi- Display Support) |

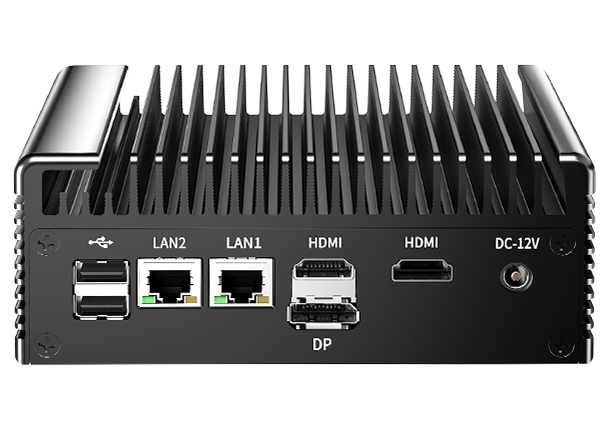

HDMI | 2*HDMI1.4 Max 4K 60hz |
| DP | 1*DP1.4 Max 4K 60hz | |
| Storage | SATA | 1*SATA3.0 6Gb/s |
| M.2_SSD(M_KEY) | 1*M.2 SSD2280 (NGFF/PCIEx2 adaptive) | |
| LAN | RJ45 | 2*intel I226-V (Lan1 can modify two USB) |

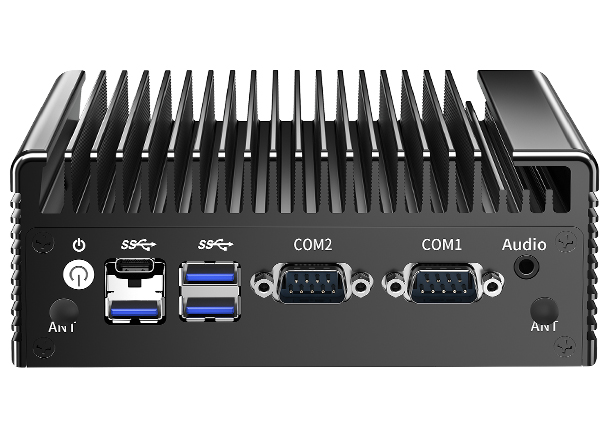

| USB | USB2.0/3.0 | 2*USB2.0 2*USB3.0 1*USB3.2 Gen1 (near the heat dissipation gear) 1*typec3.0 (no touch function) |
| Serial Port | DB9 | 2*COM RS232 (both support RS485) |
| Audio Interface | 3.5mm | Realtek ALC897 7.1-channel HDA encoder |
| M.2_WIFI(E_KEY) | M.2_WIFI(E_KEY) 2230 socket PCIE protocol supports CNVI | |
| MPCIE | Support USB WIFI/4G USB protocol (optional PCIE protocol and M.2_WIFI same PCIE) | |
| SIM | 1*Mini SIM compatible with Nano SIM | |
| Hardware Detection | Watchdog | Watchdog Timer |
| Fan | 4Pin 5V CPU Fan detection and intelligent control | |
| Hardware Control | Auto Power-on(AT-ATX) | AT_ATX(1-2)AUTO POWER ON，AT_ATX(2-3)NORMAL |
| Power Supply | DC_IN | DC 12V, DC plug 55*25mm |
| Temperature /Humidity |
Operating | 0~60 degrees Celsius/5~95%RH, relative humidity, no condensation |
| Storage | -40~80 degrees Celsius/5~95%RH, relative humidity, no condensation | |

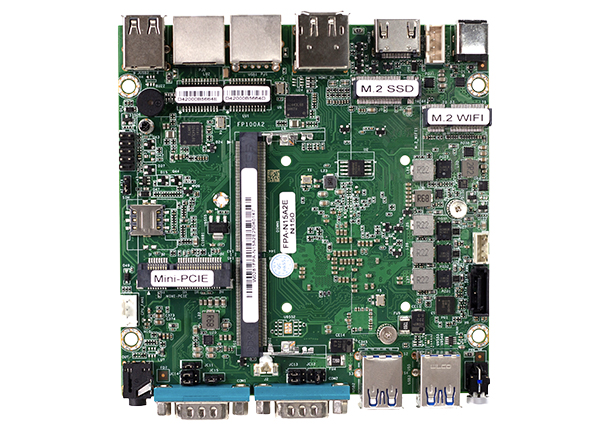

| Dimensions | PCB | 120*120mm |

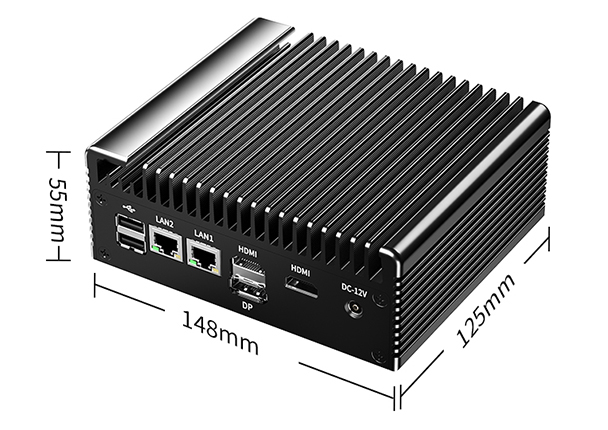

| Chassis | 148*125*56mm | |
