AXTRON's compact control host is designed specifically for industrial edge computing and IoT scenarios. Equipped with an Intel® Celeron N-series quad-core processor, it integrates multiple display outputs, full interface expansion, and military-grade reliability to meet the stringent requirements of intelligent manufacturing, smart cities, energy management, and other scenarios requiring high performance, low power consumption, and strong adaptability .
| CPU | Integrated Intel® Celeron N95/N97/N100/N150/N305/N355 quad-core processor | |
| Processor | Alder Lake-N N95/3.40 GHz ,quad core processor, TDP 15W | |
| Integrated intel Celeron N97 / 1.60GHz dual core processor, TDP 6.5Wcompatible with intel@ Airmont series CPU | ||
| Integrated intel Celeron N100 / 3.40GHz quad core processor, TDP 6Wcompatible with intel@ Alder Lake-N series CPU | ||
| Iintegrated intel Celeron N150 / 3.80GHz quad core processor, TDP 6W compatible with intel® Alder Lake-N series CPU | ||
| Integrated lntel Celeron N305 / 3.80GHz quad core processor, TDP 15W compatible with intel@ Alder Lake-N series CPU | ||
| Intel® Core" Processor N-series,N355/3.90 GHz ,8 core processor, TDP 15W | ||
| BIOS | AMI EFI BIOS Power-on after power loss, PXE, WOL | |
| RAM | 1*SODIMM DDR4 3200MHz Max 32G | |
| GPU | Integrated Intel® UHD Graphics | |
| Display (Multi- Display Support) |

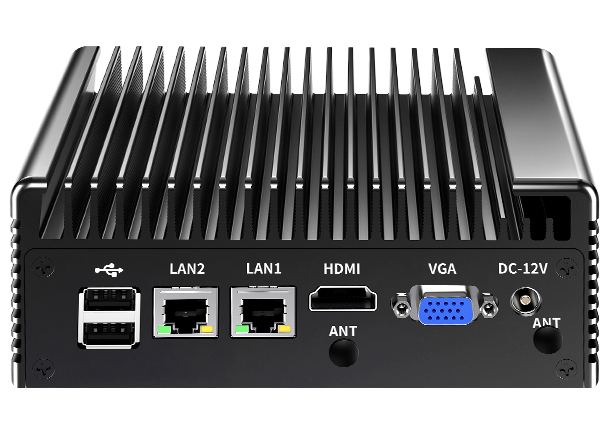

HDMI | 1*HDMI2.0 Max 4K 60hz (one more can be added) |
| DP/VGA | 1*DP1.2 4K 60Hz/1*VGA 1080P 30Hz (choose one) | |
| Storage | SATA | 1*SATA3.0 6Gb/s |
| M.2 | 1* M.2 Key-M 2280 | |
| LAN | RJ45 | 2* Realtek Gigabit Ethernet ports |
| USB | USB2.0/3.0 | 4*USB3.0+2*USB2.0 |
| Built-in I/O | interface | 1* TPM2.0 pin interface 2*6Pin, 1* hard disk power supply interface, 1* 4pin small white seat power interface, 1* 2*5Pin GPIO pin |

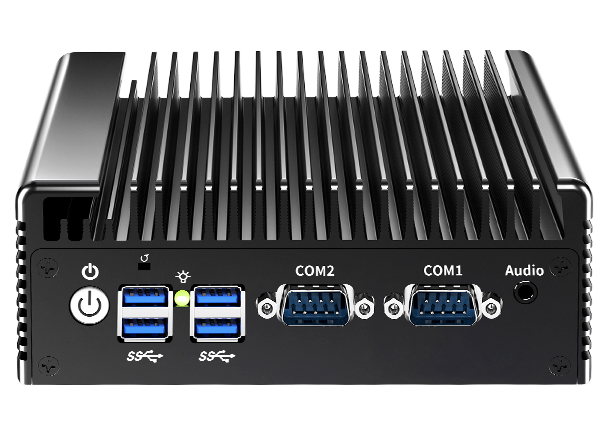

| Serial Port | DB9 | 2*COM RS232 (modify the hardware to support RS485) |
| Expansion interface | MPCIE | Support WIFI/4G PCIE protocol |
| SIM | 1*Nano SIM | |
| GPIO | Support 8 GPIOs | |
| Hardware Detection | Watchdog | 4~255 seconds watchdog timer |
| Fan | 4Pin 12V CPUFan detection and intelligent control (optional) | |
| Hardware Control | Auto Power-on(AX-ATX1) | AX-ATX (1-2) default, AX-ATX (2-3) automatically starts when a power is received |
| Power Supply | DC_IN | DC 12V, DC plug 5.5*2.5mm |
| Temperature /Humidity |
Operating | -10~60 degrees Celsius/5~95%RH, relative humidity, no condensation |
| Storage | -20~70 degrees Celsius/5~95%RH, relative humidity, no condensation | |

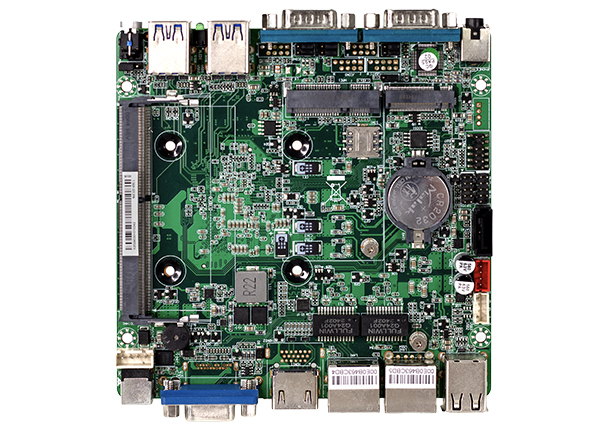

| Dimensions | PCB | 120*120mm |

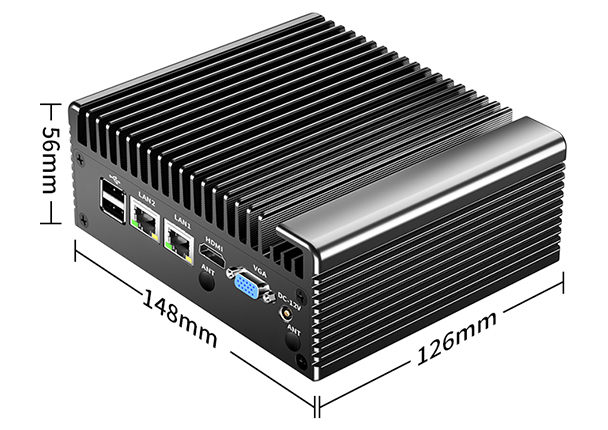

| Chassis | 148*125*56mm | |
