As industrial automation transitions to intelligent systems, upgrading legacy equipment and ensuring multi-protocol compatibility have become key challenges. The AX-F65-AX-Core4/5-2C-2L , with its multi-generation processor compatibility, minimalist expansion design, and adaptability to all environmental scenarios , serves as a bridge connecting traditional production lines with smart factories. It provides a cost-effective intelligent upgrade solution specifically for small and medium-sized manufacturing enterprises, warehousing and logistics, energy monitoring, and other scenarios.
| CPU | Intel® Core I3/I5/I7 | |
| BIOS | AMI 64M BIOS automatic boot upon incoming call, PXE, WOL | |
| RAM | 1*SODIMM DDR3L 1333MHz Max 8G | |
| GPU | Intel® HD Graphics 4400 | |
| Display (Multi- Display Support) |
HDMI | 1*HDMI 1.4 Max 2k 60hz (4k 30hz) |
| VGA | 1*VGA Max 1080P 60Hz | |
| Storage | SATA | 1*SATA3.0 6Gb/s |
| MSATA | 1*MSATA3.0 | |
| LAN | RJ45 | 2* Realtek RTL8111H Gigabit LAN (LAN2 can be converted to double-layer USB2.0) |

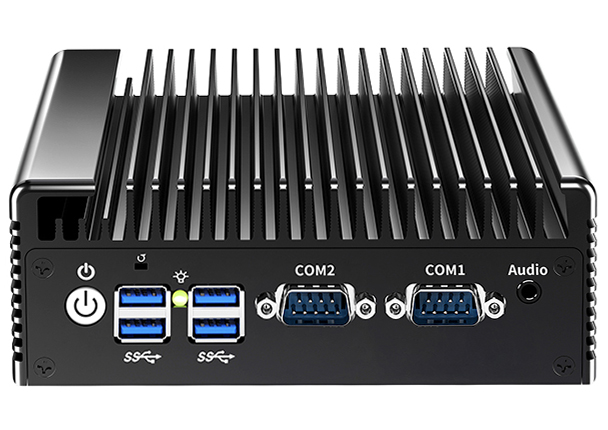

| USB | USB2.0/3.0 | 2*USB2.0&4*USB3.0 |
| Serial Port | DB9 | 2*COM RS232 (change jumper to support RS485) |
| Audio | 3.5mm | Realtek ALC897 7.1-channel HDA encoder |
| Expansion interface | MPCIE | Support WIFI/4G PCIE protocol |
| SIM | 1*NANO SIM | |
| GPIO | Support 8 GPIOs | |
| Hardware Detection | Watchdog | Watchdog timer supports hardware reset function (256 levels, 0~255 seconds) |
| Hardware Control | Auto Power-on(AX-ATX) | AX-ATX(1-2)NORMAL，AX-ATX(2-3)AUTO POWER ON |
| Power Supply | DC_IN | DC 12V, DC plug 5.5*2.5mm |
| Temperature /Humidity |
Operating | -20~60 degrees Celsius/0~95%RH, relative humidity, no condensation |
| Storage | -20~70 degrees Celsius/0~95%RH, relative humidity, no condensation | |

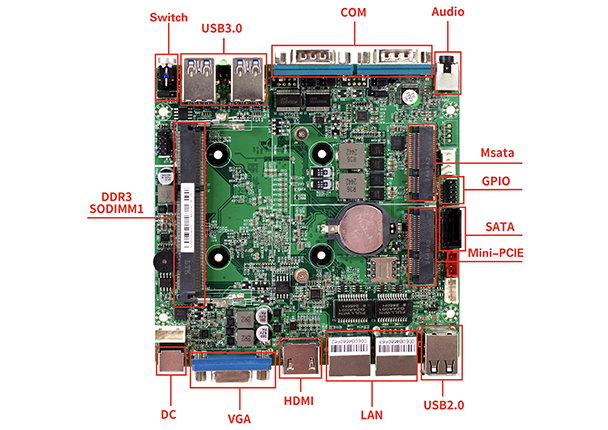

| Dimensions | PCB | 120*120mm |

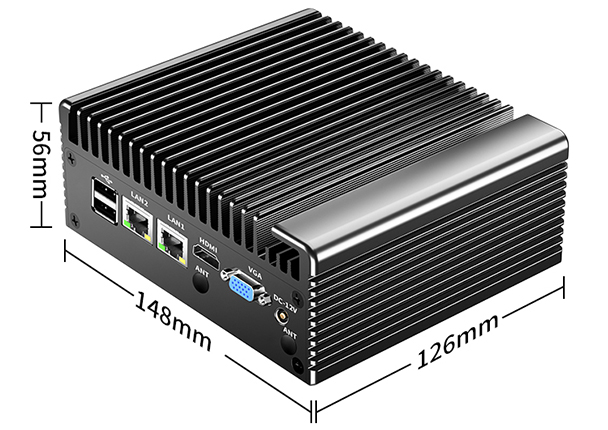

| Chassis | 148*125*56mm | |
