The AX-E52-AX-J4125-2C-4L is a fanless industrial computer from AXTRON, featuring a cable-free docking architecture and an all-aluminum profile heat dissipation design. It is equipped with an Intel® Gemini Lake-R SoC CPU processor and supports one SODIMM DDR4 2400MHz memory slot, up to 16GB. It includes external interfaces with 4*USB2.0 + 2*USB3.0 and internal 2*USB2.0. This cost-effective and highly reliable system is suitable for automation, industrial control, network security, and other applications.
| CPU | Intel Gemini Lake-R J4125 | |
| Processor | Integrated with intel ® Celeron j4125 2.0GHz quad core processor, TDP 10W compatible with Intel® GeminiLake-R full range of CPUs |
|
| BIOS | AMI 64M Bl0S (winbond 25Q64JWSlQ)Power-on after power loss, PXE, WOL | |
| RAM | 1x SODIMM DDR42400MHz Max 16G | |
| GPU | IntelR UHD Graphics 600 | |
| Display (Multi- Display Support) |
HDMI | 1x HDMI 2.0 Max 4K 30hz |
| DP | 1*DP1.24K 30Hz | |
| ROM | SATA | 1x SATA3.06Gb/s |
| MSATA | 1*MSATA3.06Gb/s(MPCIE Optional) | |

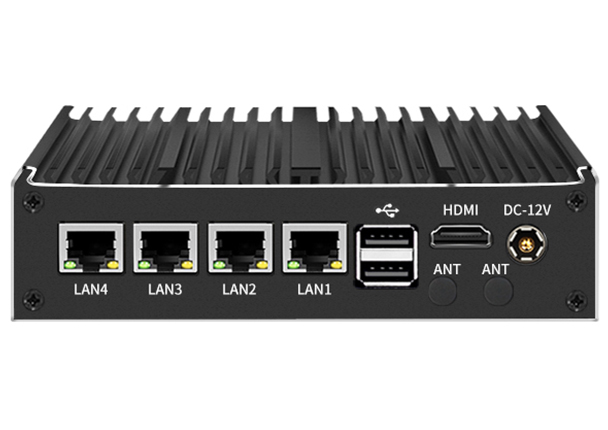

| LAN | RJ45 | 4*intel I226-V |

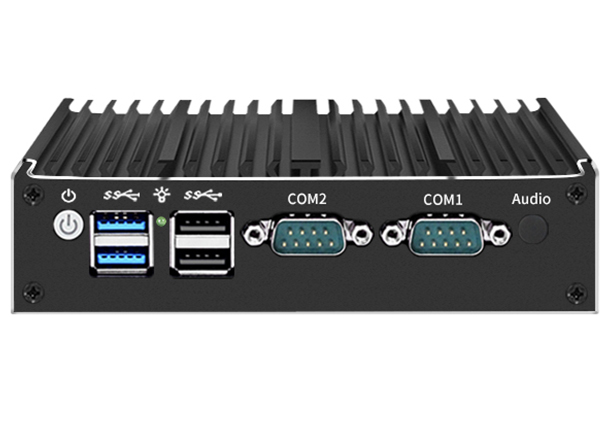

| USB | USB2.0/3.0 | External 4USB2.0(2 convertible to pin headers)+2USB3.0+Internal 2*USB2.0(1 shared with 4G) |
| Serial Port | DB9 | 2*COM RS232(Hardware-modifiable to RS485 via internal pin headers) |
| Audio Interface | 3.5mm | Realtek ALC8977.1-Channel HDA Codec |
| Expansion | MPCIE | Supports WiFi/4G PCIe protocol |
| SIM | 1 x NANO SIM | |
| GPIO | 8-Channel GPIO Support | |
| Hardware Detection | WDT | 4-255 Second Watchdog Timer |
| Fan | 4Pin 12V System Fan detection &smart control(Optional) | |
| Hardware Control | Auto Power-on(AX-ATX) | AX-ATX functionality |
| Power Supply | DC_IN | DC 12V,55x25mm |
| Temperature /Humidity |
Operating | -20~60℃/5~90%RH,Relative Humidity,Non-Condensing |
| Storage | -20~70℃/5~90%RH,Relative Humidity,Non-Condensing | |

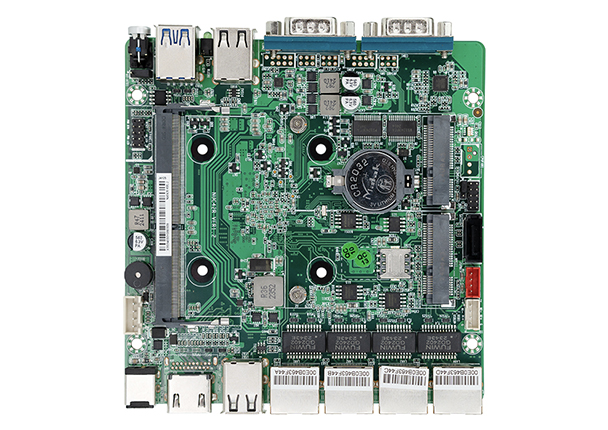

| Dimensions | PCB | 120x 120mm |
| Chassis | 145x 127x 37mm | |
