AX-E52-AX-J4125-2C-2L is a fanless integrated computer from Axtron. It features a wire-free connection architecture and an all-aluminum profile heat dissipation design. Equipped with an Intel® Gemini Lake-R SoC CPU processor, it has one SODIMM DDR4 2400MHz memory slot, supporting a maximum memory capacity of 16GB. In terms of USB interfaces, it comes with 2USB2.0 + 4USB3.0 (external) and 2*USB2.0 (internal). This product is cost-effective and highly reliable, making it suitable for industries such as automation and industrial control.
| CPU | / | Intel Gemini Lake–R J4125 |
| Processor | / | Integrated with Intel® Celeron J4125 2.0GHz quad core processor, TDP 10W compatible with Intel® Gemini Lake–R full range of CPUs |
| BIOS | / | AMI 64M BIOS (winbond 25Q64JWSIQ) Power-on after power loss, PXE, WOL |
| RAM | / | 1*SODIMM DDR4 2400MHz Max 16G |
| GPU | / | Intel® UHD Graphics 600 |

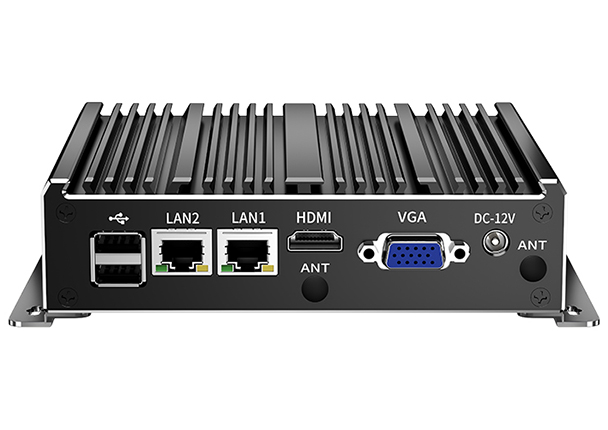

| Display (Multi-Display Support) | HDMI | 1*HDMI1.4 Max 4K 30hz |
| EDP | 1*VGA Max 1080P 60Hz (HDMI optional) (CS521e solution) | |
| ROM | SATA | 1*SATA3.0 6Gb/s |
| MSATA | 1*MSATA3.0 6Gb/s (MPCIE Optional) | |
| LAN | RJ45 | 2*RTL8111H (Lan1 can be modified to pin headers, Lan2 can be modified to two USB ports (shared with the internal two)) |

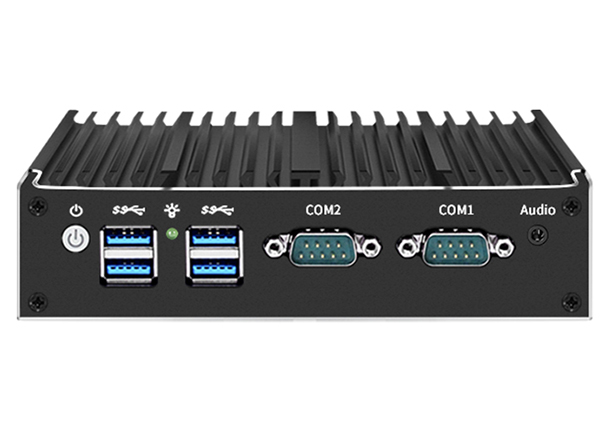

| USB | USB2.0/3.0 | External 2*USB2.0 (can be changed to pin headers) + 4*USB3.0 + internal 2*USB2.0 (one shared with 4G) |
| Serial Port | DB9 | 2*COM RS232 (both support RS485, internal pin headers) expandable to COM3 4–pin header 2.0mm |
| Audio | 3.5mm | Realtek ALC897 7.1 Channel HDA Codec |
| Expansion Interface | MPCIE | Supports WIFI/4G PCIE protocol |
| SIM | 1*Nano SIM | |
| GPIO | Supports 8–Channel GPIO | |
| Hardware Detection | WDT | Watchdog Timer |
| Hardware Control | Auto Power–on (AX–ATX) | AX–ATX(1–2) NORMAL, AX–ATX(2–3) AUTO POWER ON |
| Power Supply | DC-IN | DC 12V, DC 55*25mm |
| Temperature/Humidity | Operating | –20~60℃ / 5~95% RH, relative humidity, no condensation |
| Storage | –20~70℃ / 5~95% RH, relative humidity, no condensation | |

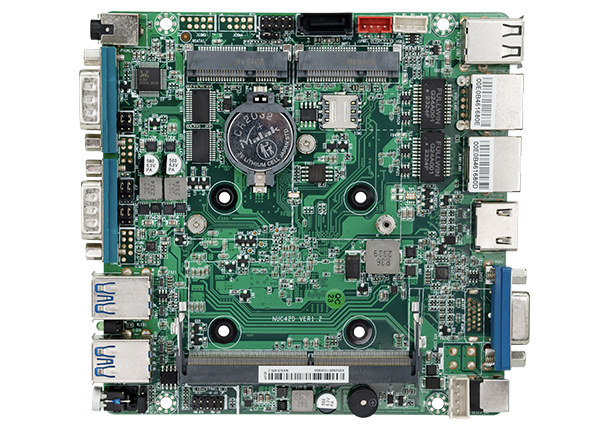

| Dimensions | PCB | 120*120mm |

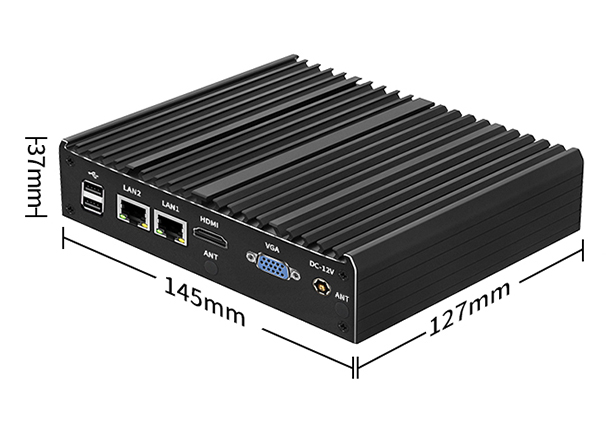

| Chassis | 145*127*37mm |
