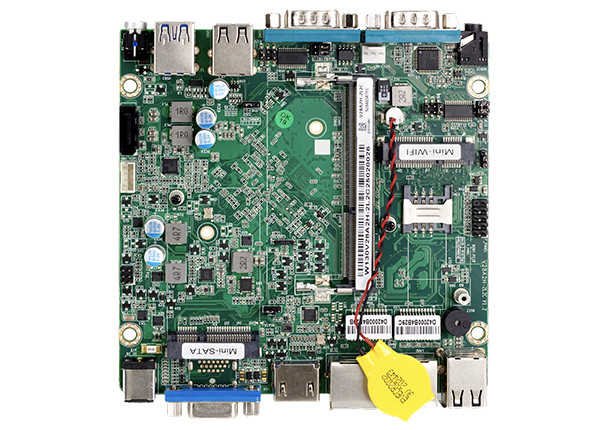

AX-E50/TF-N2840-2930-J1900-2C-2L-P is a fanless integrated computer of Axtron. It adopts a wire-free connection architecture and an all-aluminum profile heat dissipation design. Equipped with an Intel Bay_Trail Celeron CPU processor, it has one SODIMM DDR3 1333MHz memory slot, supporting a maximum memory capacity of 8GB. For external interfaces, it is equipped with 5USB2.0 + 1USB3.0. It is cost-effective and highly reliable, and is suitable for industries such as automation and industrial control.
| CPU | Intel Bay_Trail Celeron J1900/N2840/N2930 |
| Processor | Integrated Intel Celeron J1900/2.0GHz quad core processor, TDP 10W compatible with Intel ® Baytrail-I/M/D series CPU 4 |
| Intel Bay Trail N2840 processor, dual core clock speed 2.16/2.58GHz, TDP 7.5W | |
| Integrated Intel Celeron N2930 / 1.83GHz quad core processor, TDP 7.5W compatible with Intel® Bay Trail-D/M series CPU 4 | |
| BIOS | AMI 128M BIOS (MXIC 25U6435EF) Power-on after power loss, PXE, WOL |
| RAM | 1*SODIMM DDR3L 1333MHz Max 8G |
| GPU | Intel® UHD Graphics |
| Display (Multi-Display Support) | HDMI: 1*HDMI 1.4 Max 1080P 60hz |
| EDP: 1*VGA Max 1080P 60hz | |
| ROM | SATA: 1*SATA2.0 3Gb/s |
| mSATA: 1*SATA2.0 3Gb/s | |
| LAN | RJ45: 2*RTL8111H Gigabit Ethernet (optional RTL8106E Fast Ethernet) |

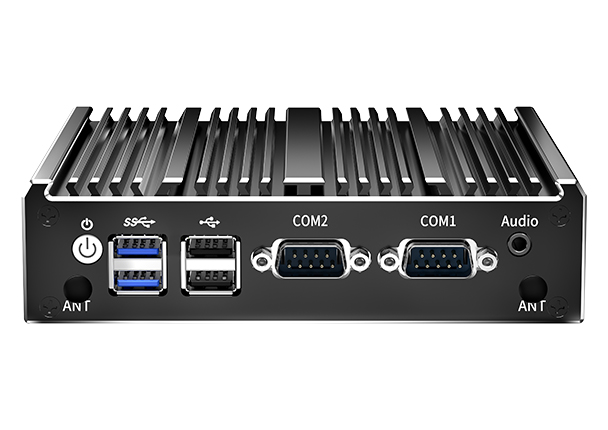

| USB | USB2.0/3.0: 5*USB2.0+1*USB3.0 (near the cooling fins) |
| Serial Port | DB9: 2*COM RS232 (COM1&2 modified jumper cap supports RS485) |
| Audio | 3.5mm: Realtek ALC662 5.1 Channel HDA Codec |
| Expansion Interface | MPCIE: Supports WIFI/4G PCIE protocol |
| SIM: 1*Mini SIM compatible with Nano SIM | |
| GPIO: Supports 4 GPIO | |
| Hardware Detection | WDT: Watchdog Timer |
| Hardware Control | Auto Power-on (AX-ATX): AUTOPWR(1-2)AUTO POWER ON, AUTOPWR(2-3)NORMAL |
| Power Supply | DC-IN: DC 12V, DC 55*25mm |
| Temperature/Humidity | Operating: 0-60℃ / 5-95% RH (relative humidity), non-condensing |
| Storage: -20-60℃ / 0-90% RH (relative humidity), non-condensing | |
| Dimensions | PCB: 120*120mm |

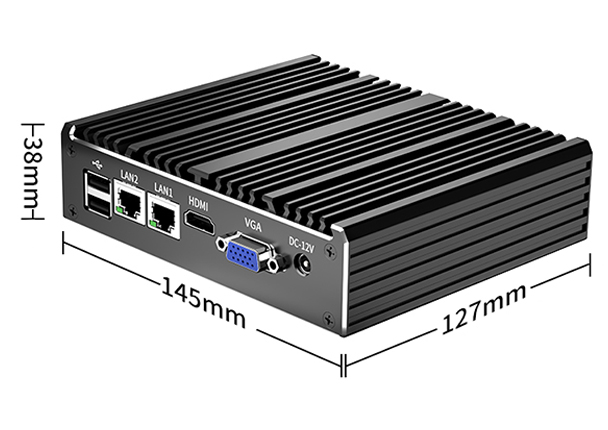

| Chassis: 145*127*37mm |
