AX-F65-Core6/7/8-2C-2L



  • CPU：Intel® Core 6/7/8 generation
  • RAM：1*SODIMM DDR4 2133MHz Max 32G
  • Storage：1*SATA3.0；1* M.2 Key-M 2280 slot (M.2 PCIE and SATA hard drive adaptive)

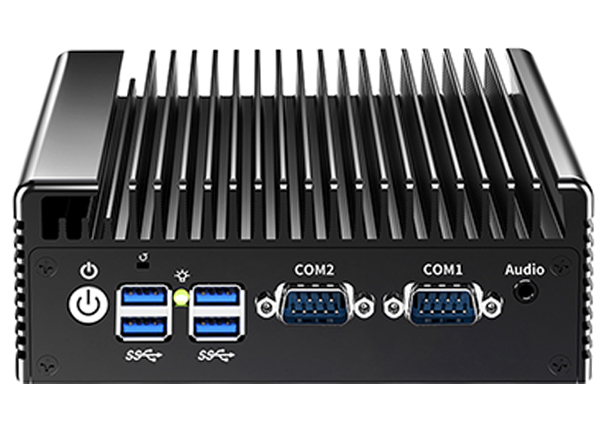

  • Interfaces：1*HDMI1.4；1*VGA/DP；2*LAN；2*USB 2.0 & 4*USB 3.0；2*COM RS232；1*Audio
  • Expansion interface：1*MPCIE supports WIFI/4G PCIE protocol；1*Nano SIM；1 2*5 Pin GPIO pin (pitch: 2.0mm)
    Send Email Get Price

    Product Overview

    AXTRON has launched a high-performance industrial control host specifically for industrial automation and intelligent control scenarios. Equipped with 6th, 7th, and 8th generation Intel® Core processors, it integrates three core advantages: multi-generation processor compatibility, full industrial interface adaptability, and military-grade reliability . Designed specifically for scenarios such as intelligent manufacturing, edge computing, and smart energy, it meets customers' stringent requirements for high performance, long lifecycles, and strong security.



    微信图片_2025-08-27_155231_278



    微信图片_2025-08-27_155244_841-2



    微信图片_2025-08-27_155248_723

    Product Features

    • CPU：Intel® Core 6/7/8 generation
    • RAM：1*SODIMM DDR4 2133MHz Max 32G
    • Storage：1*SATA3.0；1* M.2 Key-M 2280 slot (M.2 PCIE and SATA hard drive adaptive)
    • Interfaces：1*HDMI1.4；1*VGA/DP；2*LAN；2*USB 2.0 & 4*USB 3.0；2*COM RS232；1*Audio
    • Expansion interface：1*MPCIE supports WIFI/4G PCIE protocol；1*Nano SIM；1 2*5 Pin GPIO pin (pitch: 2.0mm)

    Parameter

    CPU Intel® Core 6/7/8 generation
    BIOS AMI EFI BIOS automatic boot upon incoming call, PXE, WOL
    RAM 1*SODIMM DDR4 2133MHz Max 32G
    GPU Intel® HD Graphics
    Display  (Multi-
    Display  Support)    		 HDMI 1*HDMI2.0 Max 4K 60hz
    VGA/DP 1*VGA Max 1080P 60Hz/DP Max 4K 60Hz
    Storage SATA 1*SATA3.0 6Gb/s
    M.2 1* M.2 Key-M 2280 slot (M.2 PCIE and SATA hard drive adaptive)
    LAN RJ45 2*RTL8111H Gigabit network cards
    USB USB2.0/3.0 2*USB2.0&4*USB3.0
    Serial Port DB9 2*COM RS232 (change jumper to support RS485) (expandable COM3 4-pin 2.0mm)
    Audio 3.5mm Realtek ALC897 7.1-channel HDA encoder
    Expansion interface MPCIE Support WIFI/4G PCIE protocol
    SIM 1*NANO SIM
    GPIO 1 2*5 Pin GPIO pin (pitch: 2.0mm)
    Hardware Control Auto Power-on(AX-ATX) AX-ATX(1-2)NORMAL，AX-ATX(2-3)AUTO POWER ON
    Hardware encryption TPM 1* TPM2.0 pin interface 2*7Pin
    Power Supply DC_IN DC 12V, DC plug 5.5*2.5mm
    Temperature
    /Humidity    		 Operating -20~60 degrees Celsius/0~90%RH, relative humidity, no condensation
    Storage -20~60 degrees Celsius/0~90%RH, relative humidity, no condensation

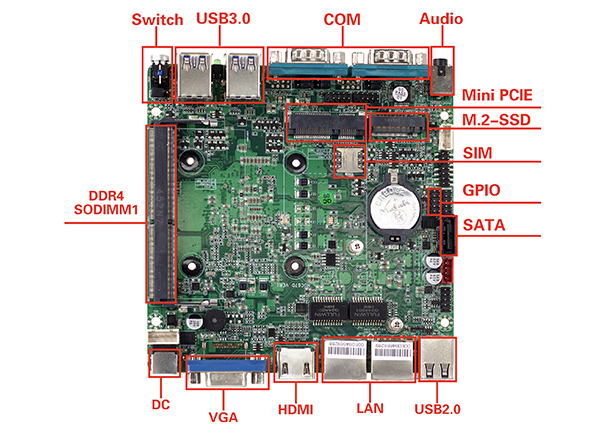

    Dimensions PCB 120*120mm

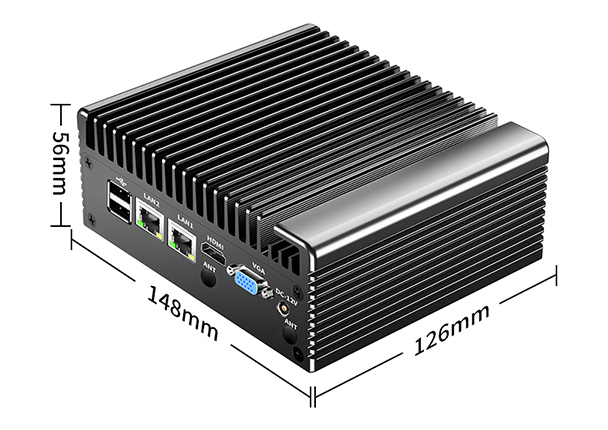

    Chassis 148*125*56mm
