Rackmount VGA 16 Ports

Item no.1016VGA

1U Rack-Mountable,VGA Port,USB2.0,3 Switch method，1920×1080@30-60Hz.

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

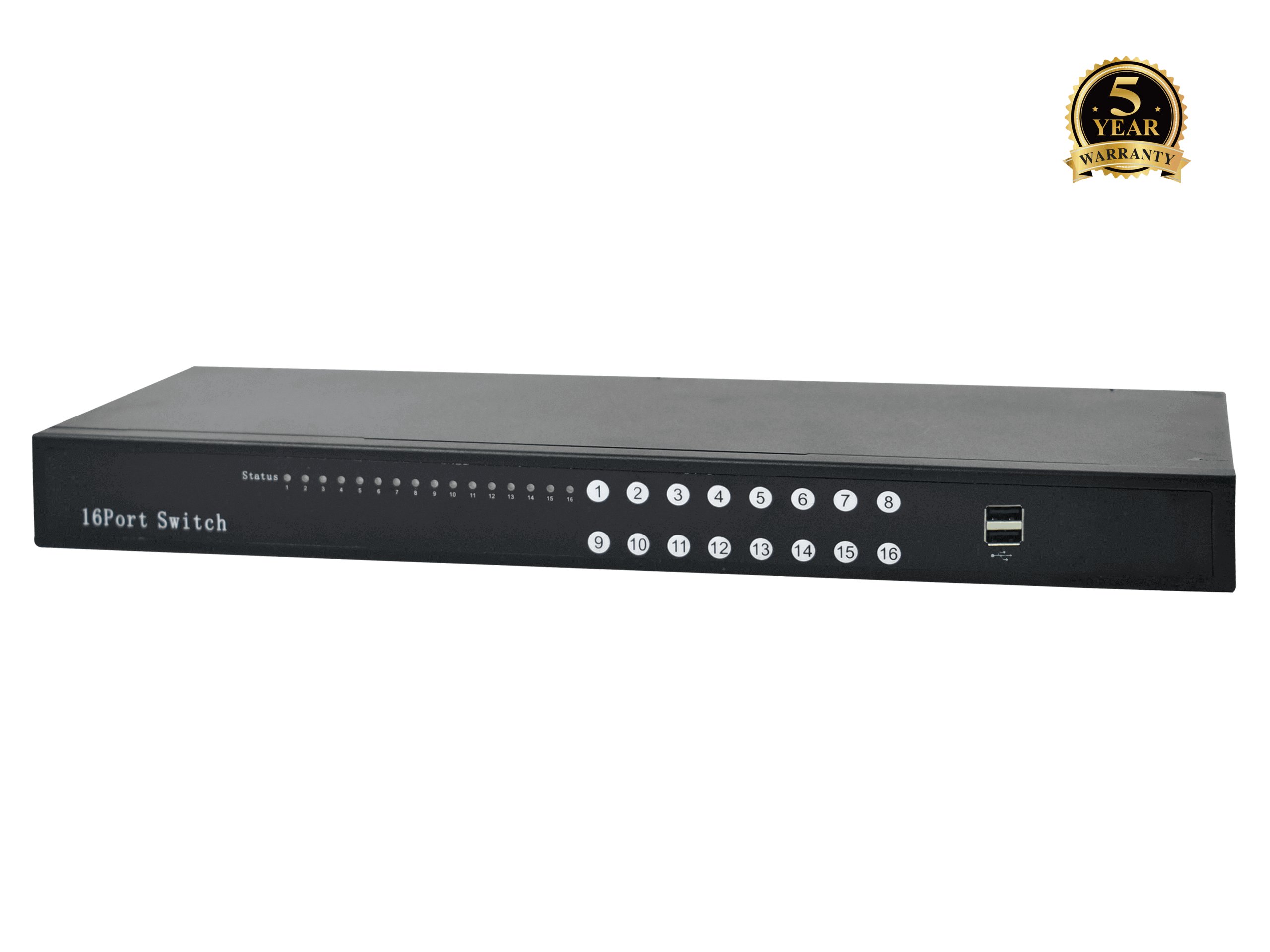

The 1016VGA rack-mountable USB KVM switch allows access and control of up to 16 computers from a single console (keyboard, mouse, and monitor). By cascading to an additional 15 additional switches, up to 512 computers can be controlled from a single keyboard and mouse console.

Support resolutions up to 1920x1080; DDC2B. Switching between computers can be easily done through front panel buttons, keyboard hotkey combinations, or on-screen display (OSD).

The rack-mounted KVM switch supports USB connections for the console and computers, allowing for the connection of an additional VGA display.

Product Features

Standard 19-inch rack installation, occupying only 1U rack space.
Standard VGA connection - Connect to servers or computers through standard VGA connectors.
Supports computers with USB keyboards and mice.
Convenient computer switching is achieved through front panel buttons, keyboard hotkey combinations, or on-screen display (OSD).
Automatic scanning function, used to monitor the computer selected by the user.
Hot plug - You can add or remove computers without shutting down the switch.
By naming the server and entering the SN number in a fuzzy manner, you can quickly locate and select the server security features you need.
A single group of control terminals manages 16 servers
Can cascade multiple devices and manage up to 512 computers
Support multi-user account management and management level, password protection and search PC server name
High brightness, high definition, resolution up to 1920x1080@60Hz
Support various operating systems：Dos/Windows series, Linux, Unix Mac OS 8.6/9/10, SUN Solaris 8/9

Parameter

Model	TX-1016HD
direct computer connection	16 units
Maximum computer connections	512 units
cable port	HDMI interface (3*USB keyboard and mouse)
Toggle scan time	1~255 seconds (OSD adjustable)
Applicable cabinet	800-1040 MM
switch mode	hotkey switch key switch OSD
Display	resolution: 1920*1080 brightness: 300nits contrast ratio 1000:1
LED display control	multilingual OSD Adjust for best results
Voltage input	A110V-240V 50Hz-60Hz power:10W
Cabinet material	High-strength corrosion-resistant steel plate
color	Insulating black paint (Other colors available)
physical dimension	135mm(deep)444mm(Width)43.8mm(high)
weight	3.7KG
storage temperature	-30℃~70℃
Operating temperature	-10℃~60℃
humidity	0%~80%RH
Safety certification	FCC CE ROHS ISO9001
