HDMI 4 port KVM Switch

Item no.4 port hdmi kvm

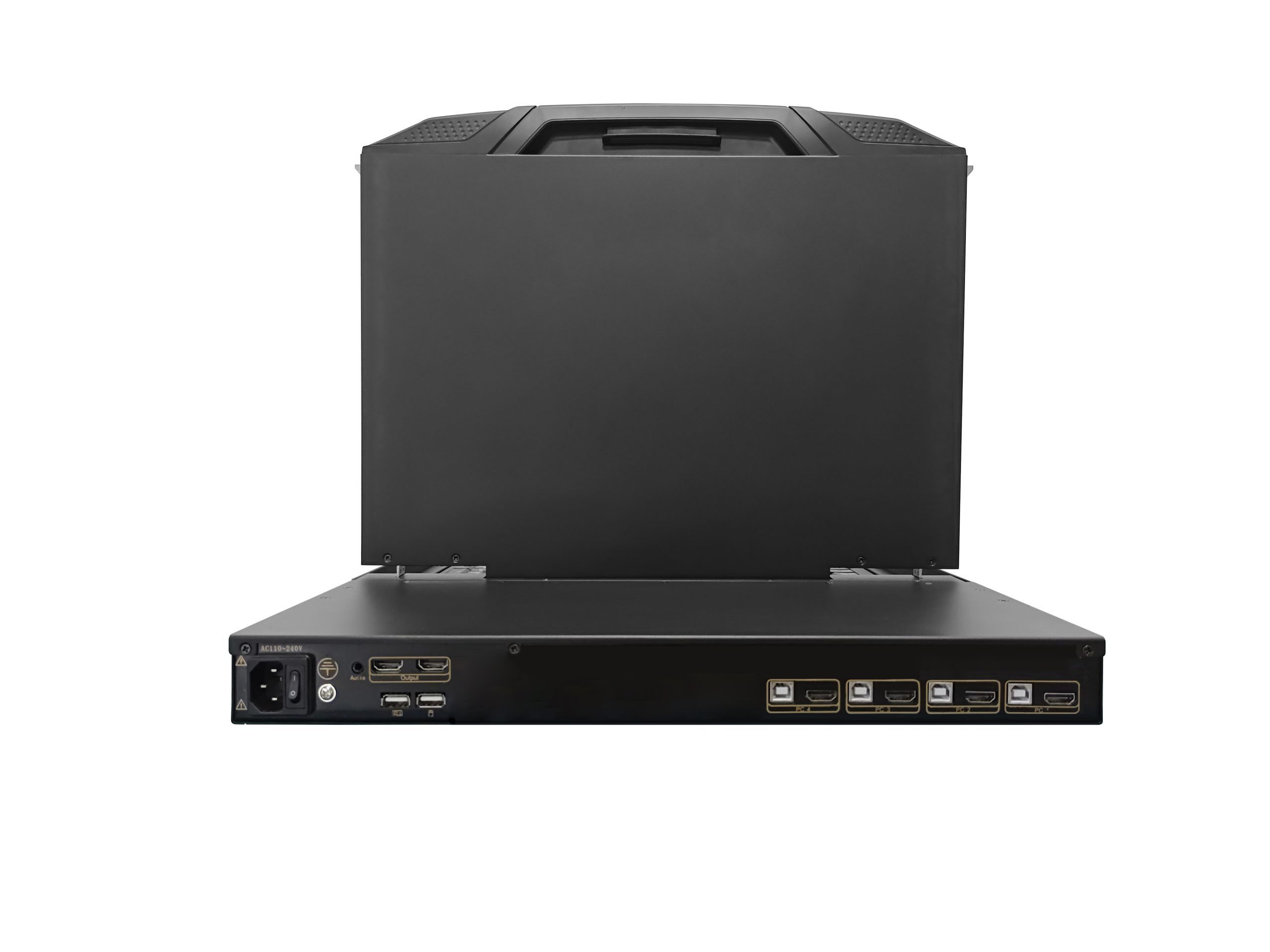

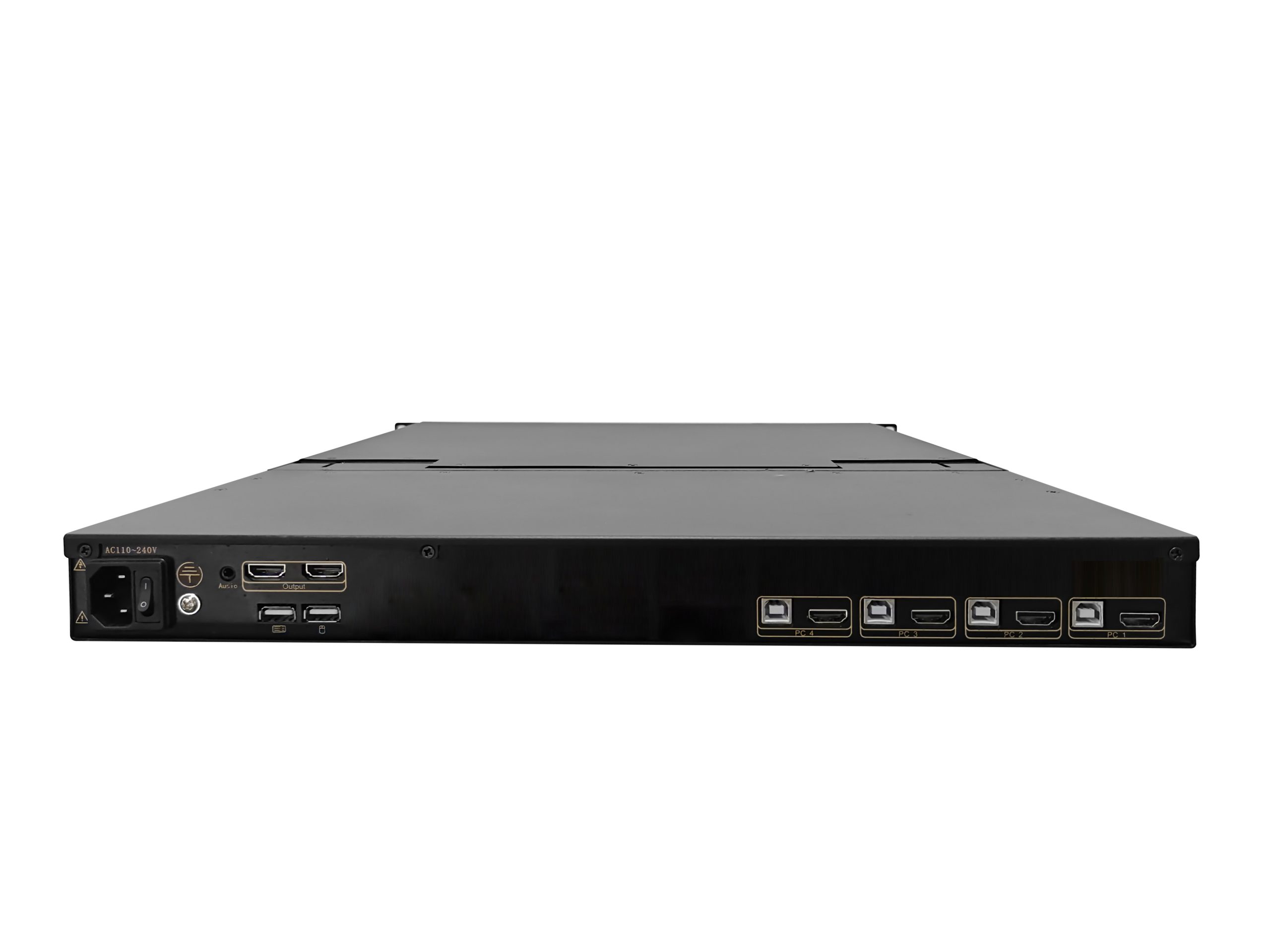

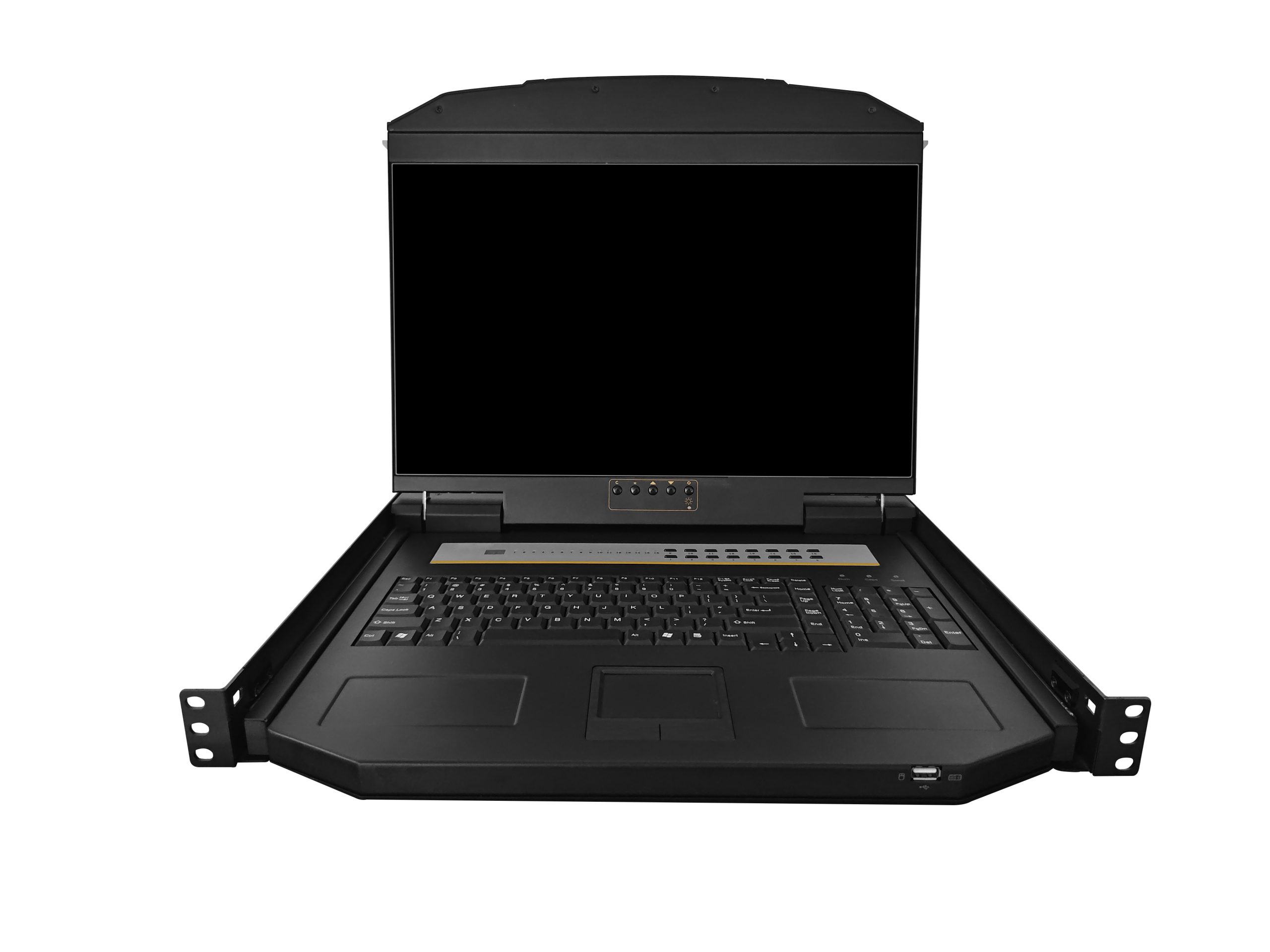

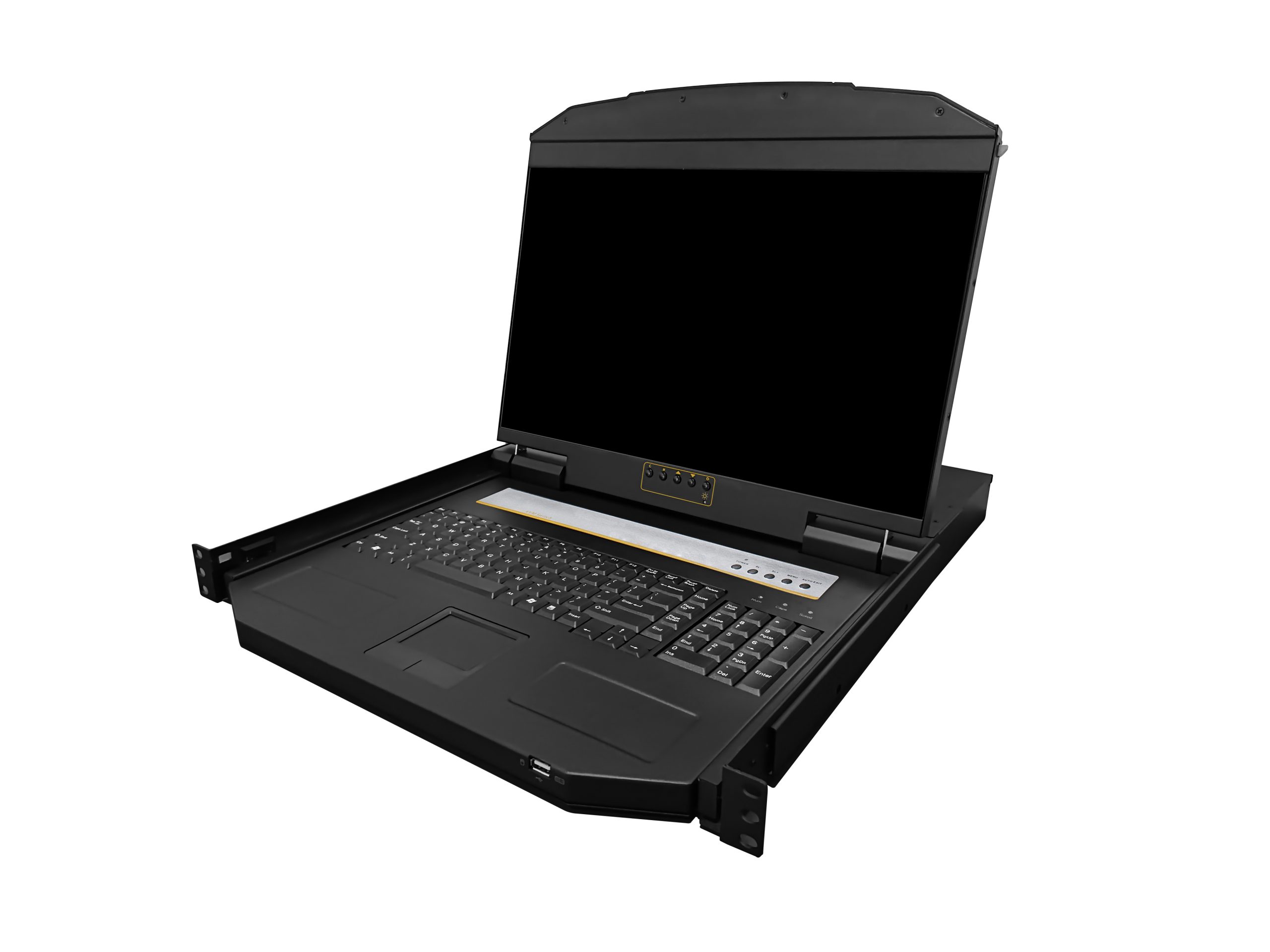

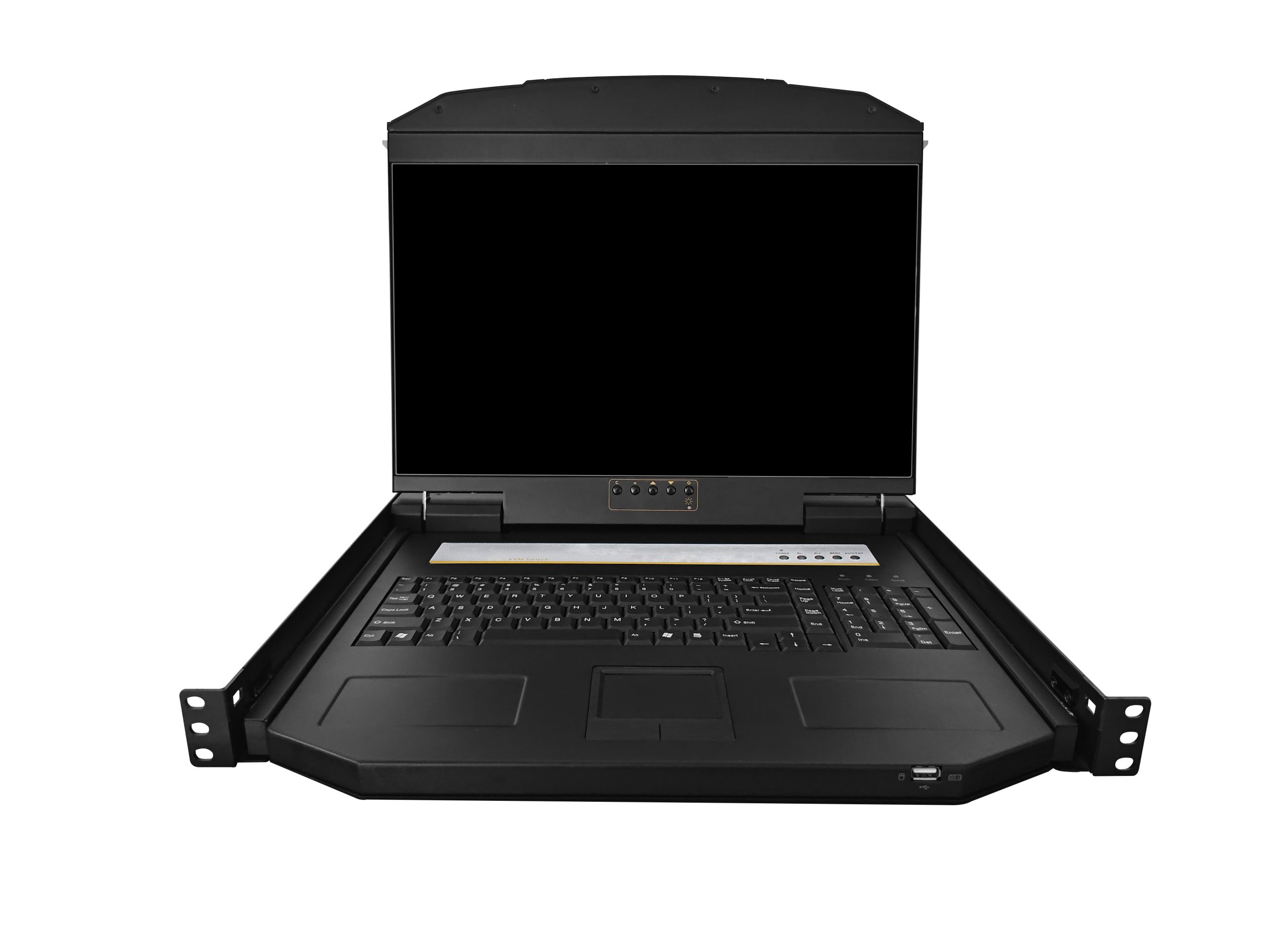

The Axtron’s LED KVM Switch features an integrates 17.3″ LED screen, Mechanical silent keyboard, and touchpad in a single console, occupying only 1U of rack space.

    Send Email Get Price

    Product Overview

    The TX-17 series integrates LED monitors, ultra-thin keyboard, and mouse touchpad in a 1U unit. It adopts a drawer-type installation method to completely solve the lack of space. Compared with standard keyboards, monitors, and mice, it can save 85% of the space. . It adopts high-quality A-level 17.3" LED (no bright spot) display, and the built-in switcher can directly manage 4 servers; it can manage up to 128 servers.

    Product Features

    • Integrate an 17.3-inch LED high-definition monitor and KVM console into a single dual-rail body, occupying only 1U rack space
    • The LED display can be unfolded to 135 degrees to provide a comfortable viewing angle
    • Drawer type, USB HUB function can be realized through the front USB2.0 interface
    • Easily switch between servers via hotkeys and panel buttons
    • Provides automatic scanning mode to continuously monitor user selected host
    • Support hot-swapping - can be added or removed at any time without turning off the power server
    • Naming the server and fuzzy input of the SN number can quickly locate and select the server security features you need
    • A single console manages 4 servers
    • Multiple devices can be cascaded and can manage up to 128 computers
    • Support multi-user account management and management level, password protection and search PC server name
    • 17.3-inch LED display, high brightness, high definition, high resolution up to 1920x1080@60Hz

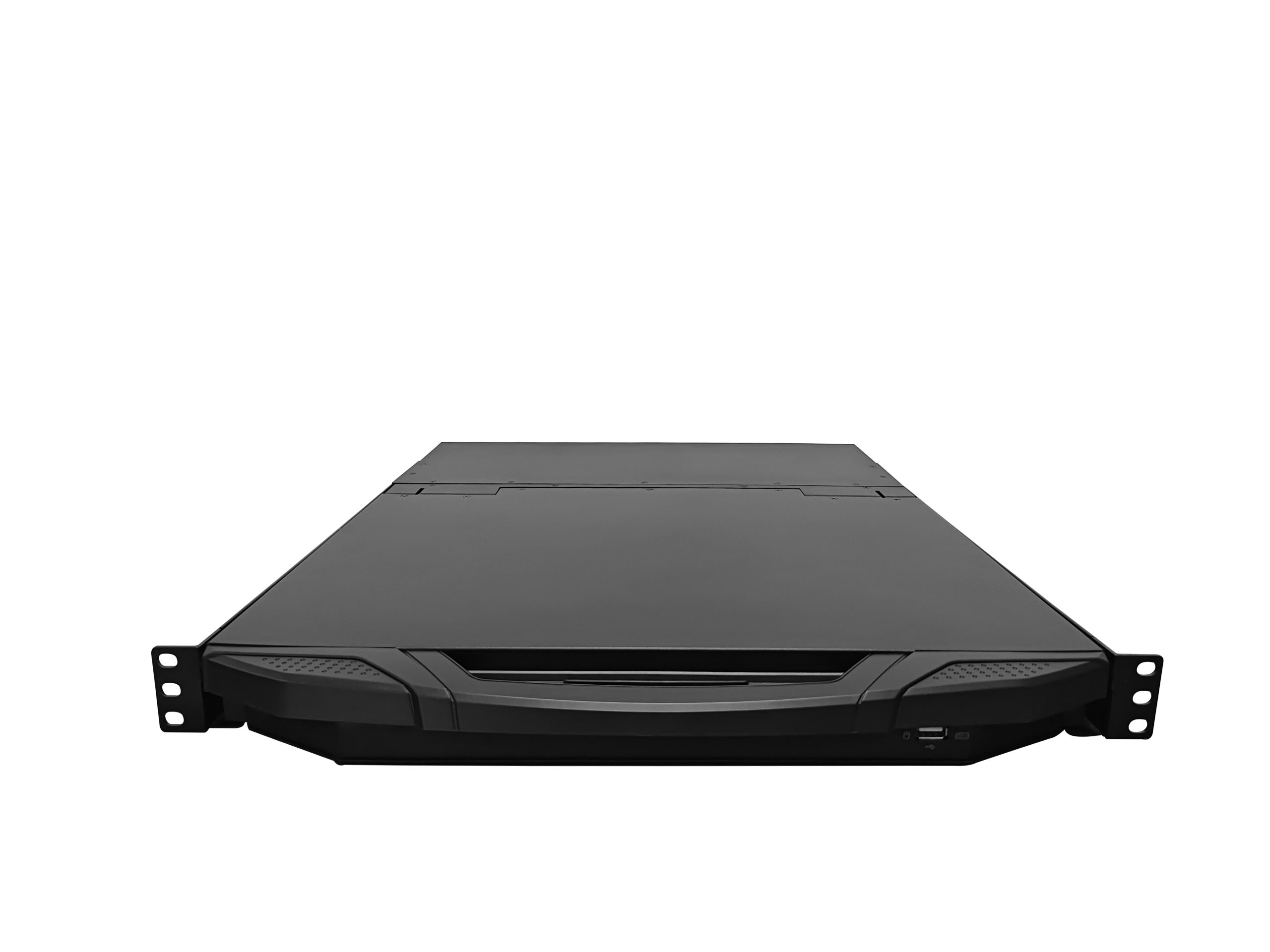

    • The LED display and keyboard/touch pad can be pulled out. In order to effectively save space in the computer room, when the keyboard/touchpad is not in use, it can be pushed back into the rack, leaving only the thin LED display for easy monitoring by managers. see server status
    • Support various operating systems：Dos/Windows series, Linux, Unix Mac OS 8.6/9/10, SUN Solaris 8/9

    Parameter

    Model TX-8804HD
    direct computer connection 4 units
    Maximum computer connections 128 units
    cable port HDMI interface (3*USB keyboard and mouse)
    Toggle scan time 1~255 seconds (OSD adjustable)
    Applicable cabinet 800-1040 MM
    switch mode Hotkey Toggle Key Toggle
    LED display 17.3 inch LED   resolution 1920*1080   brightness: 300nits    contrast ratio 1000:1
    LED display control Multi-language OSD can adjust the best effect
    keyboard/mouse 104 Mechanical Silent Keyboard Touchpad Touchpad
    voltage input A110V-240V 50Hz-60Hz   Power: 35W
    Cabinet material High-strength anti-corrosion steel plate
    color Insulating black paint (other colors optional)
    physical dimension 450mm(depth)*481mm(width)*43.8mm(height)
    weight 17.5KG
    storage temperature -30℃~70℃
    Operating temperature -10℃~60℃
    humidity 0%~80%RH
    Safety certification FCC CE ROHS ISO9001
