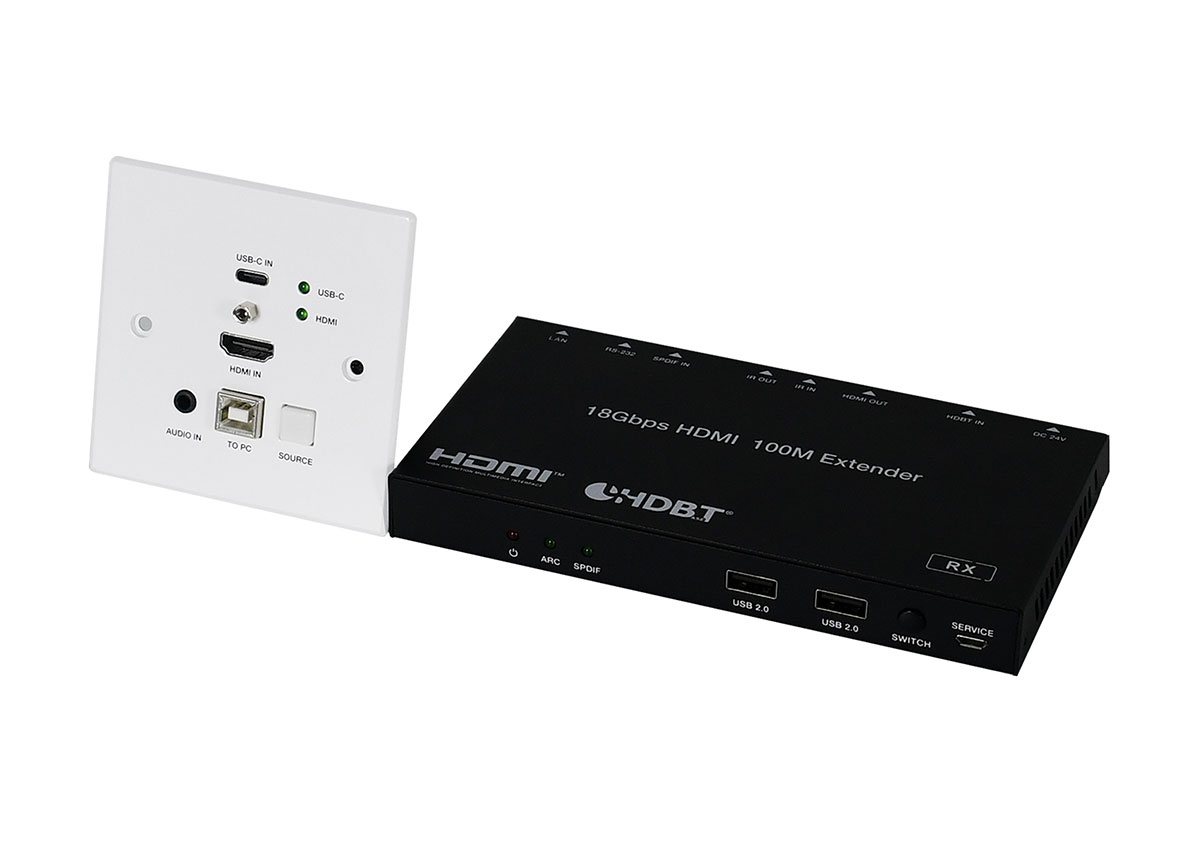

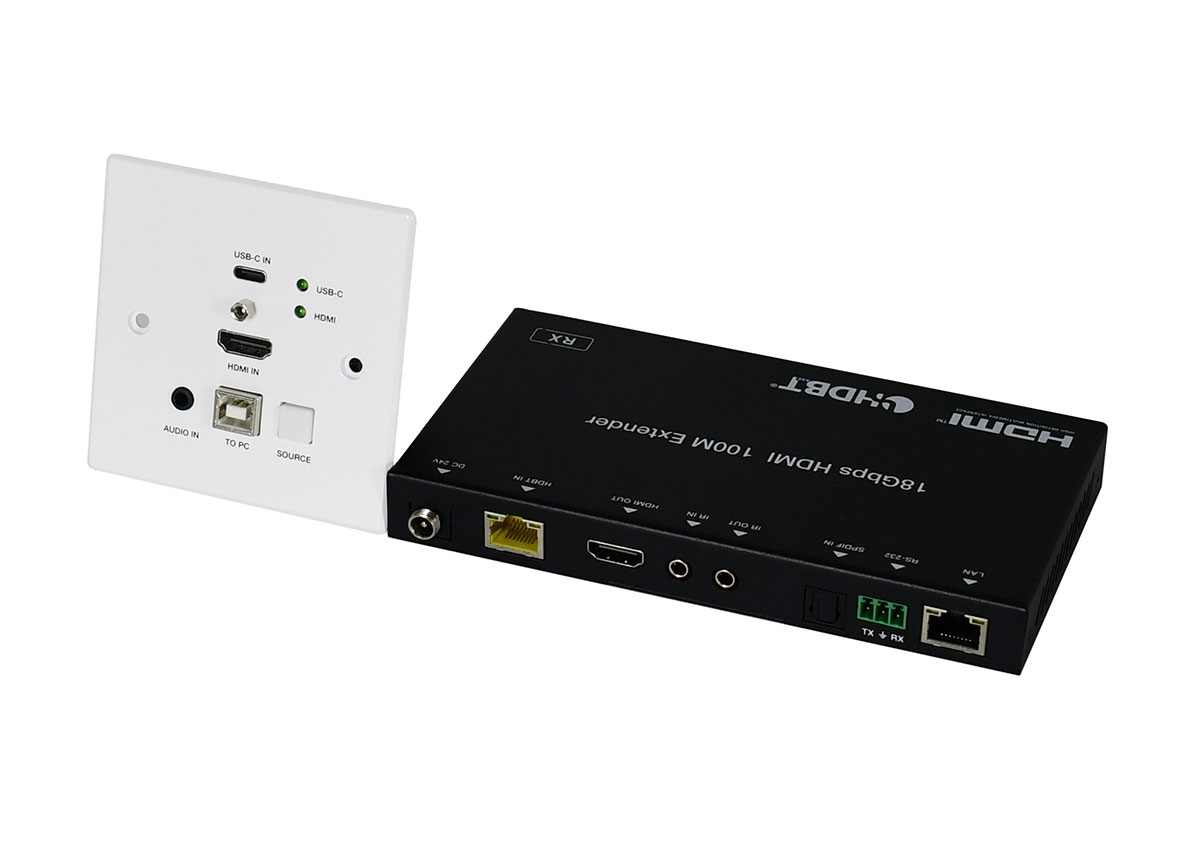

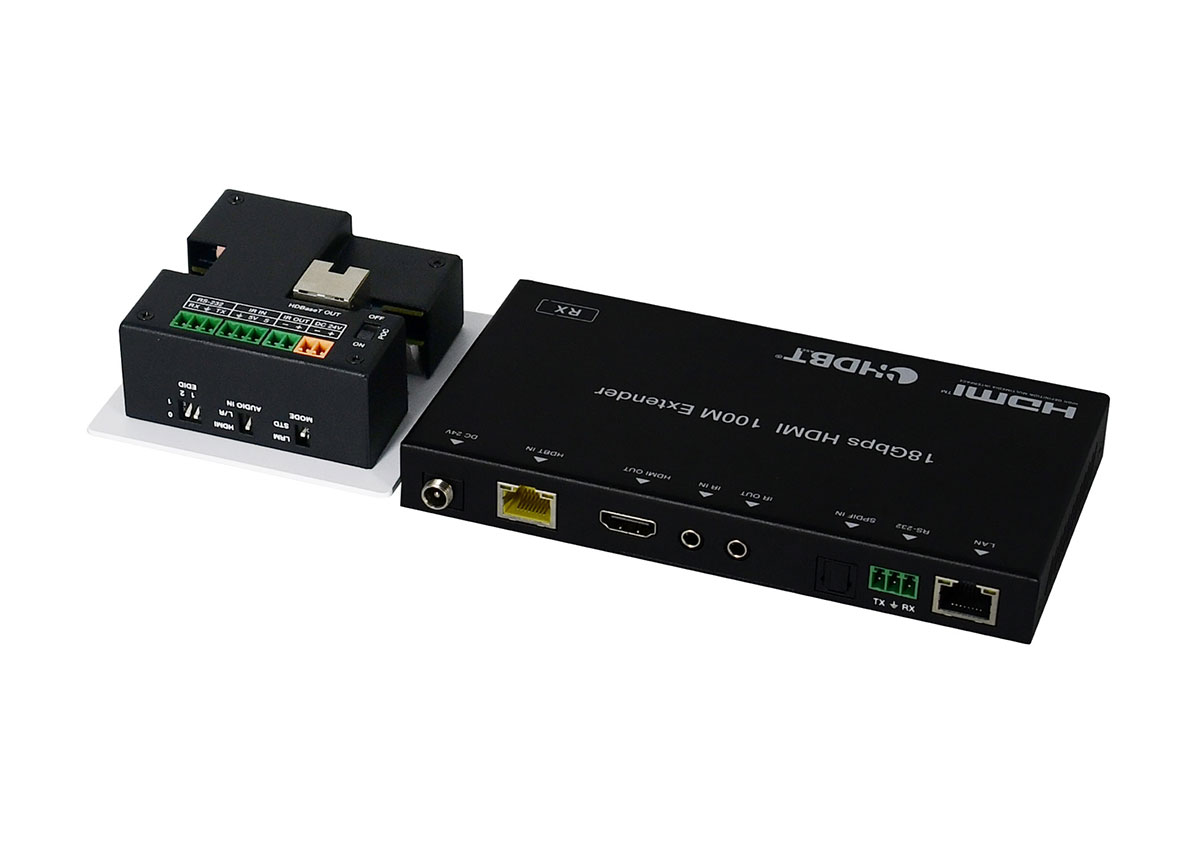

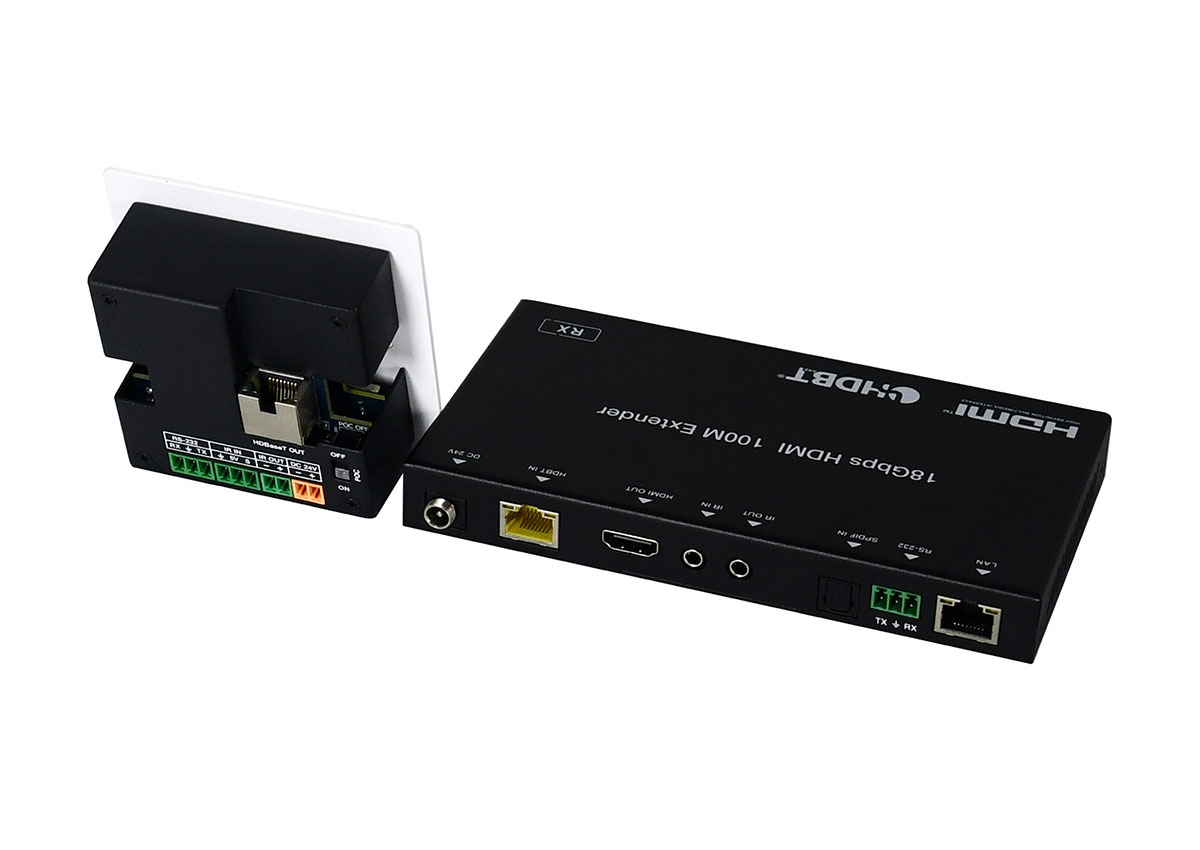

This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft/100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4.
This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft/100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The Transmitter supports ARC function and local audio extract. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports USB KVM and POC function.
The extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for any application.
|
Technical |
|||
|
HDCP Compliance |
HDCP 2.2/HDCP 1.4 |
||
|
Video Bandwidth |
18Gbps |
||
|
Video Resolution |
4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200 |
||
|
Color Space |
RGB/YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
||
|
Color Depth |
8/10/12-bit(1080P60Hz, 4K30Hz, 4K60Hz YCbCr4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) |
||
|
HDMI Audio Formats |
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
||
|
L/R Audio Formats |
PCM 2.0 |
||
|
SPDIF Audio Formats |
LPCM2.0, Dolby Digital, Dolby Digital Plus,DTS |
||
|
ESD Protection |
Human body model---±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
||
|
Connection |
|||
|
Transmitter |
Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDBT OUT [RJ45, 8-pin female] 1X SPDIF OUT[S/PDIF] 1xL/R OUT [3.5mm Stereo Mini-jack] 1xLAN [RJ45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT[3.5mm Stereo Mini-jack] 1x RS-232[Phoenix jack] 1x SERVICE[Mini-USB, Update port] 1xUSB HOST[USB Type B] |
||
|
Receiver |

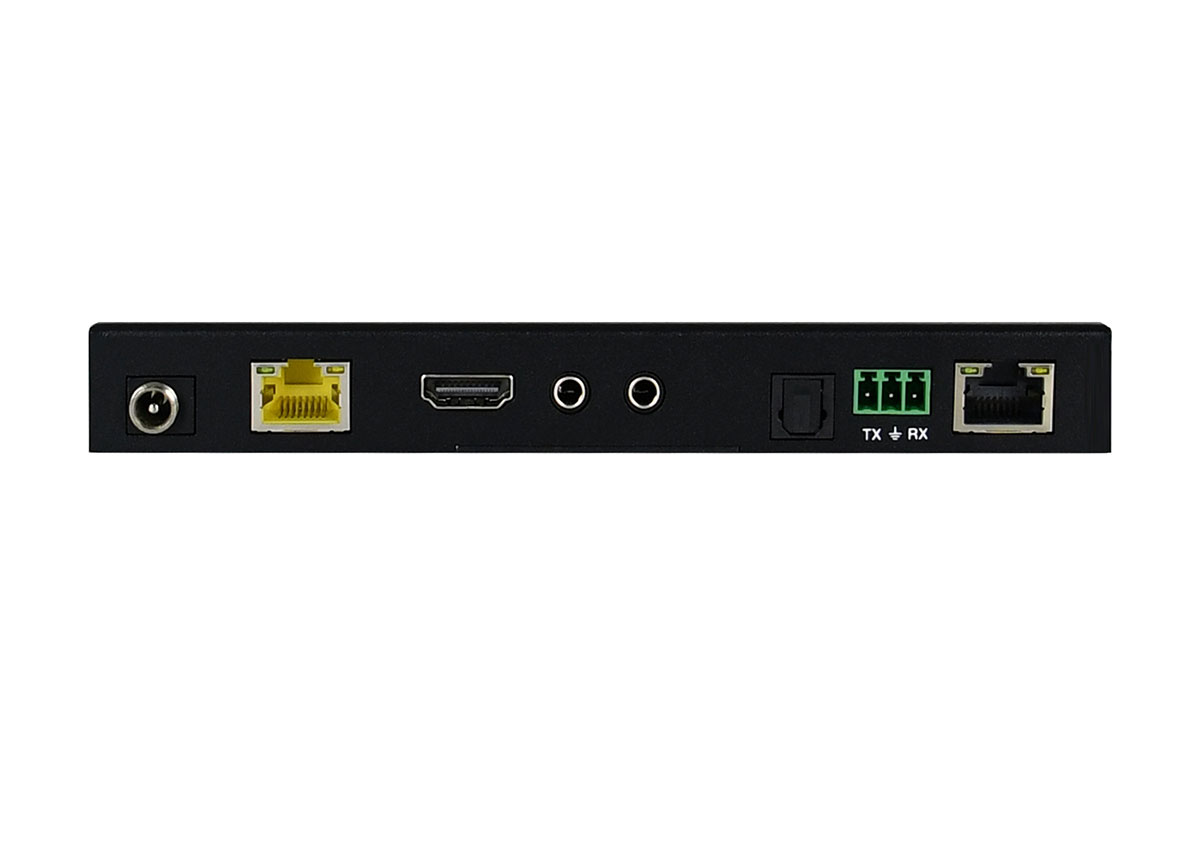

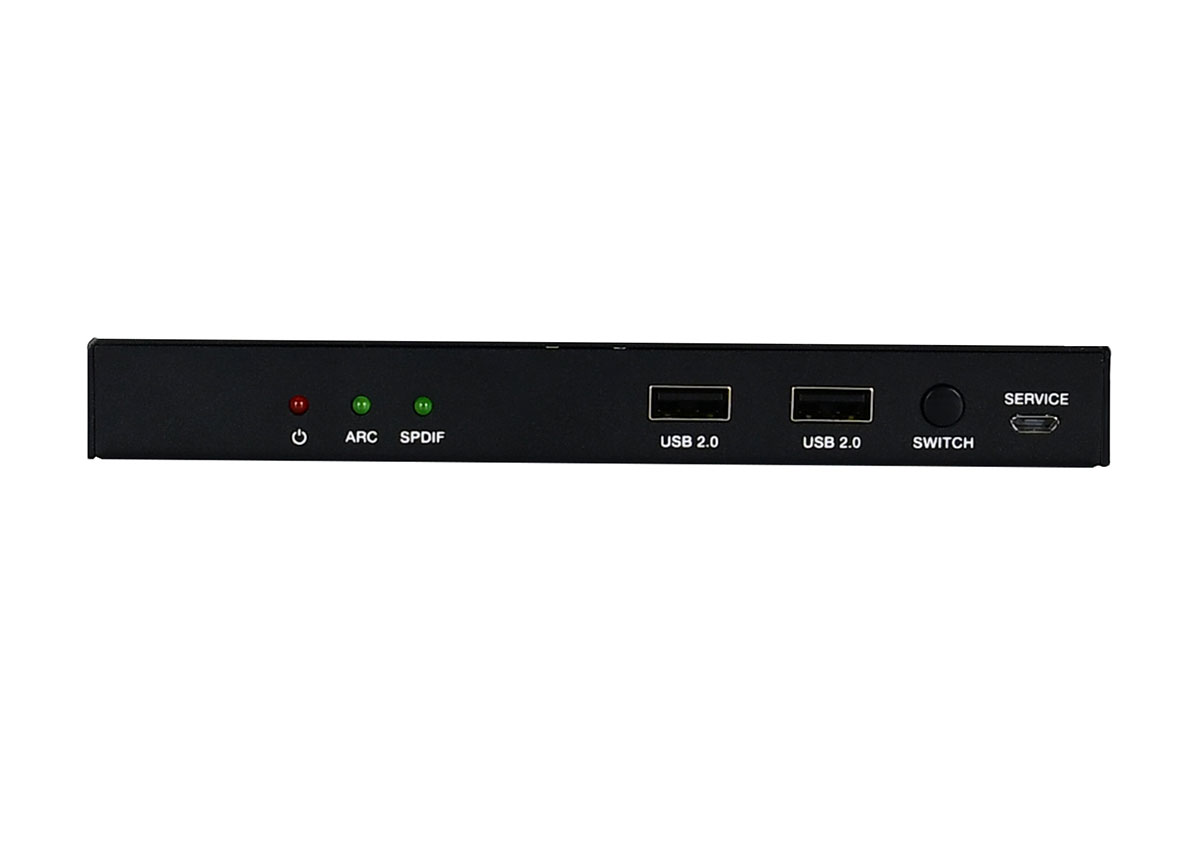

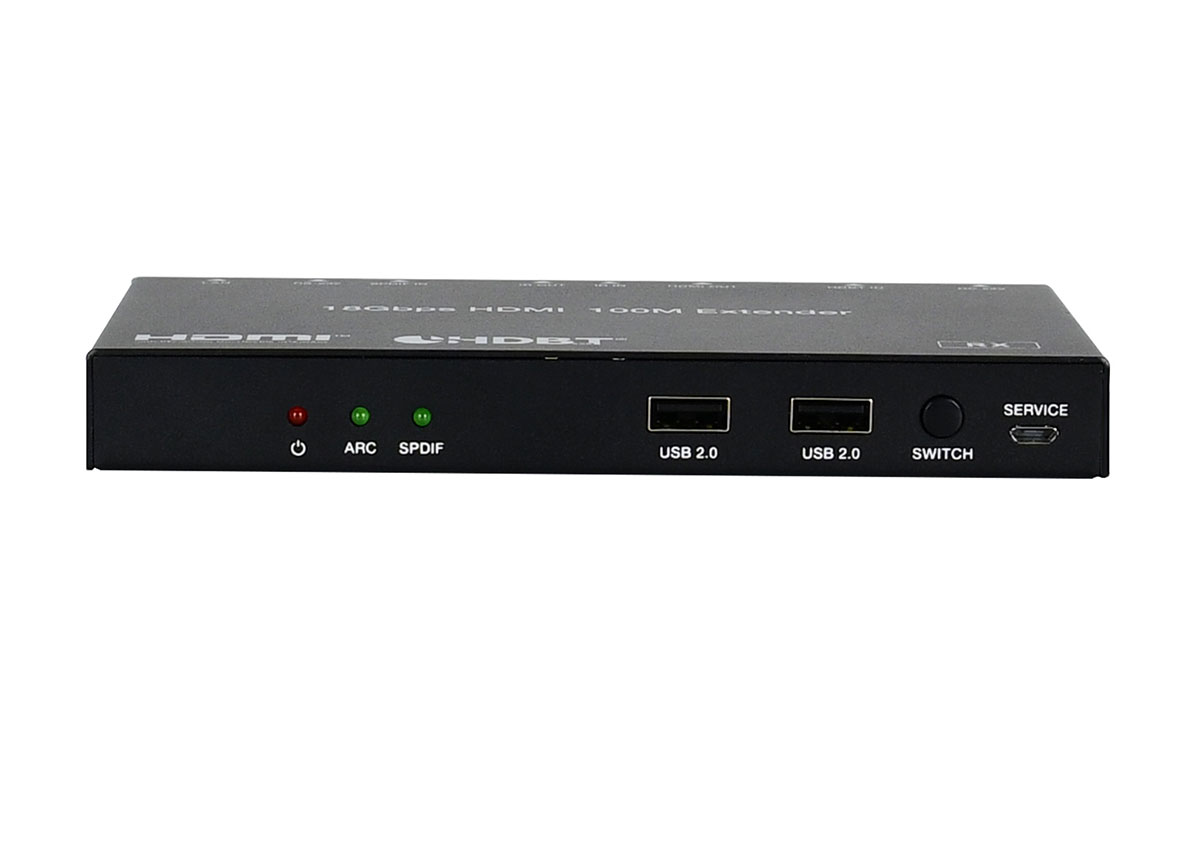

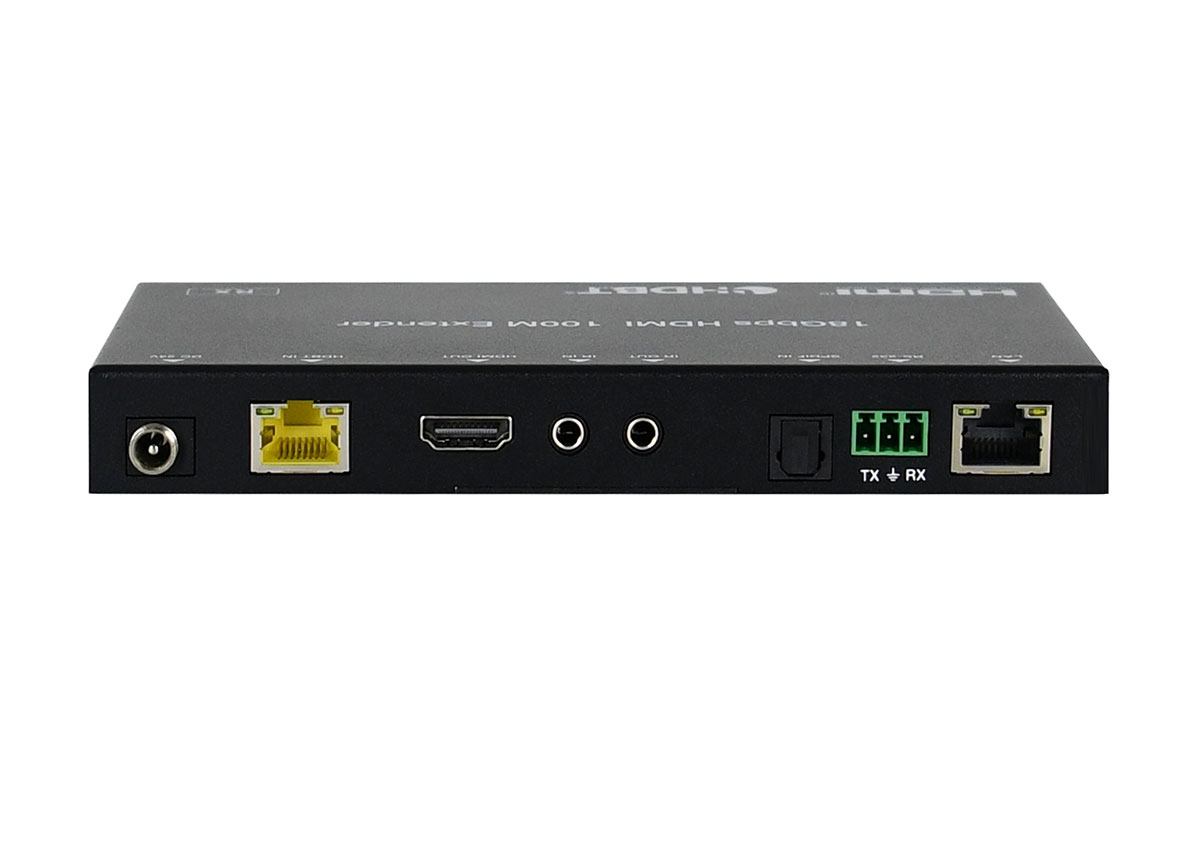

Inputs: 1x HDBT IN [RJ45, 8-pin female] 1X SPDIF IN [S/PDIF] Outputs: 1x HDMI Type A[19-pin female] 1x LAN [RJ45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT[3.5mm Stereo Mini-jack] 1x RS-232[Phoenix jack] 1x SERVICE [Mini-USB, Update port] 2x USB 2.0 [USB Type A] |
||
|
Mechanical |
|||
|
Housing |
Metal Enclosure |
||
|
Color |
Black |
||
|
Dimensions |
Transmitter / Receiver: 165mm [W] x 88mm [D] x 18mm [H] |
||
|
Weight |
Transmitter: 170g, Receiver: 165g |
||
|
Power Supply |
Input: AC 100-240V 50/60Hz Output: DC 24V/1A(Locking connector) |
||
|
Power Consumption |
13W |
||
|
Operating Temperature |
32-104℉/0-40℃ |
||
|
Storage Temperature |
-4-140℉/-20-60℃ |
||
|
Relative Humidity |
20-90% RH (No condensation) |
||
|
Resolution |
Distance |
||
|
4K2K |
296ft/90M |
||
|
1080P |
328ft/100M |
||
|
Resolution/Cable Length |
4K60 - Feet/Meters |
4K30 - Feet/Meters |
1080P 60 - Feet/Meters |
|
HDMI IN / OUT |
16ft / 5M |
32ft / 10M |
50ft /15M |
|
The use of "Premium High Speed HDMI" cable is highly recommended. |
|||
